MS-16
OPERATING CONDITIONS
Temperature: -40°C to +205°C
Pressure: Up to 10 bar, 145 psi
Speed: Up to 5m/s, 1000 fpm
MATERIALS AVAILABLE
Rotary Face: Carbon or SiC
Stationary Seat: Ceramic or SiC
Elastomers: Nitrile or Viton
Metal Parts: 304SS & 316SS

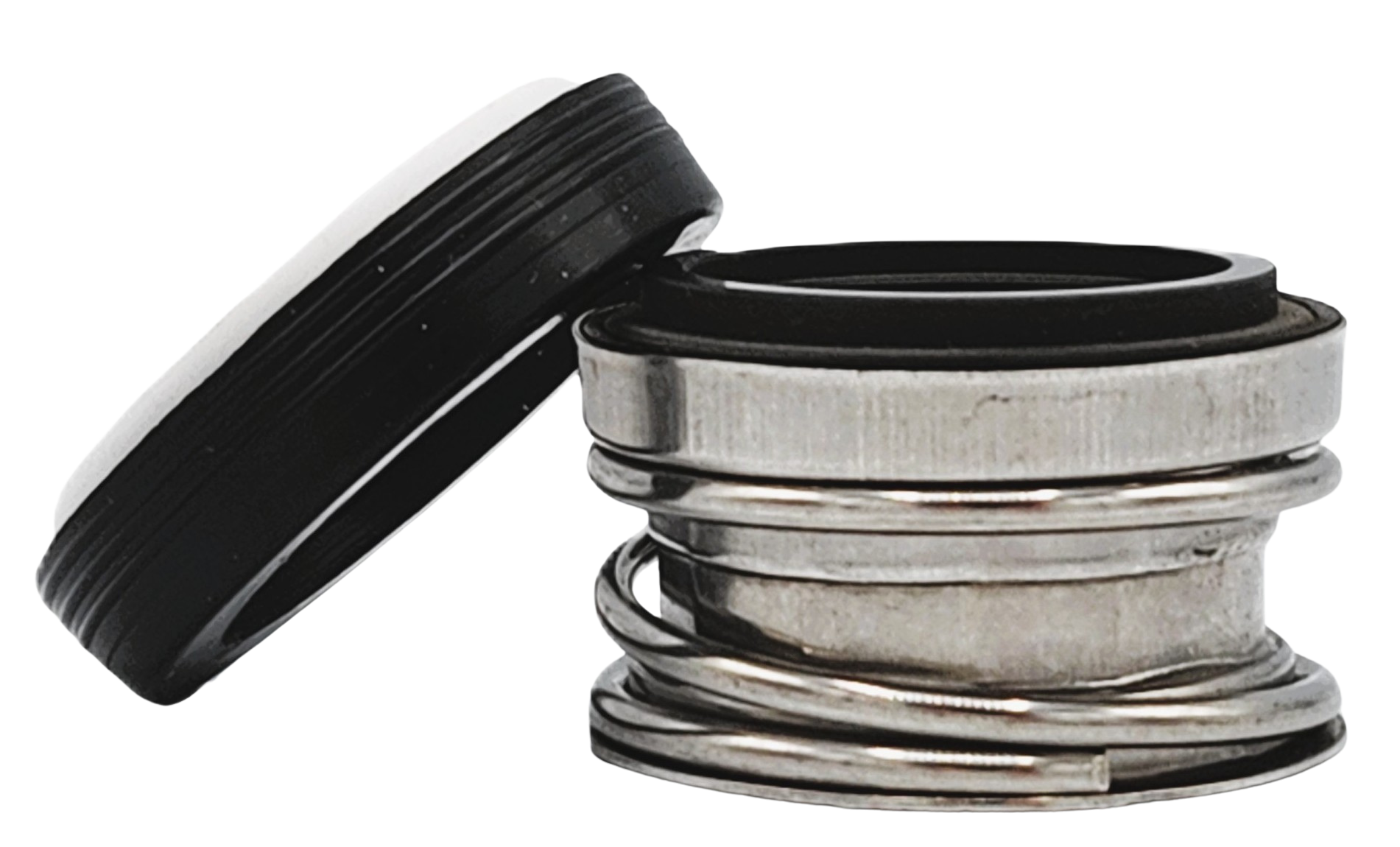

The MS-16 is an enhanced version of the MS-6, featuring a hex-torque drive and crimped head for improved performance. Designed to handle higher operating speeds, it offers increased durability and reliability, making it suitable for more demanding applications.
EQUIVALENT TO
PAC
16
