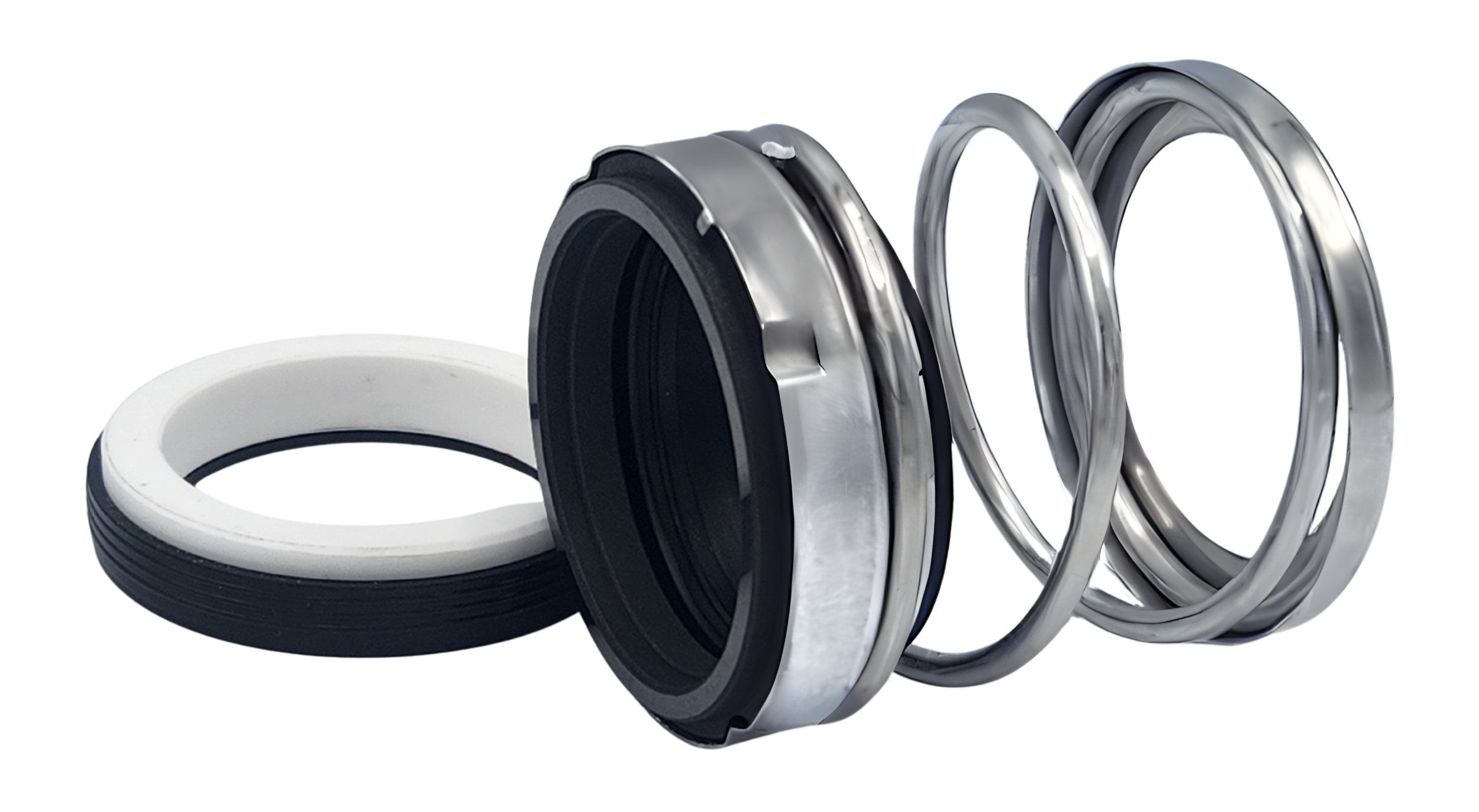

MS-21-DIN
OPERATING CONDITIONS
Temperature: -30°C to +200°C
Pressure: Up to 10 bar, 145 psi
Speed: Up to 13m/s, 2500 fpm
MATERIALS AVAILABLE
Rotary Face: Carbon, SiC or TC
Stationary Seat: Ceramic, SiC or TC
Elastomers: Nitrile, Viton or EPDM
Metal Parts: 304SS & 316SS
STATIONARY SEATS
Standard Seat: CM (Cup Mount)
The MS-21-DIN is a versatile and cost-effective mechanical seal solution, designed for reliability and efficiency. Its diaphragm, parallel spring design allows for self-alignment, ensuring smooth operation even in challenging conditions. The positive drive mechanism via a drive band enhances stability and performance. Engineered to fit imperial shaft sizes, the MS-21-DIN can be configured to meet both US and European installation standards. For straight shafts, an optional setting collar is available to simplify installation and ensure precise positioning
EQUIVALENT TO
521
240
P03
MG912
Type 24
