MS-21-IMP
OPERATING CONDITIONS
Temperature: -30°C to +200°C
Pressure: Up to 10 bar, 145 psi
Speed: Up to 13m/s, 2500 fpm
MATERIALS AVAILABLE
Rotary Face: Carbon, SiC or TC
Stationary Seat: Ceramic, SiC or TC
Elastomers: Nitrile, Viton or EPDM
Metal Parts: 304SS & 316SS
STATIONARY SEATS
Standard Seat: CM-IMP

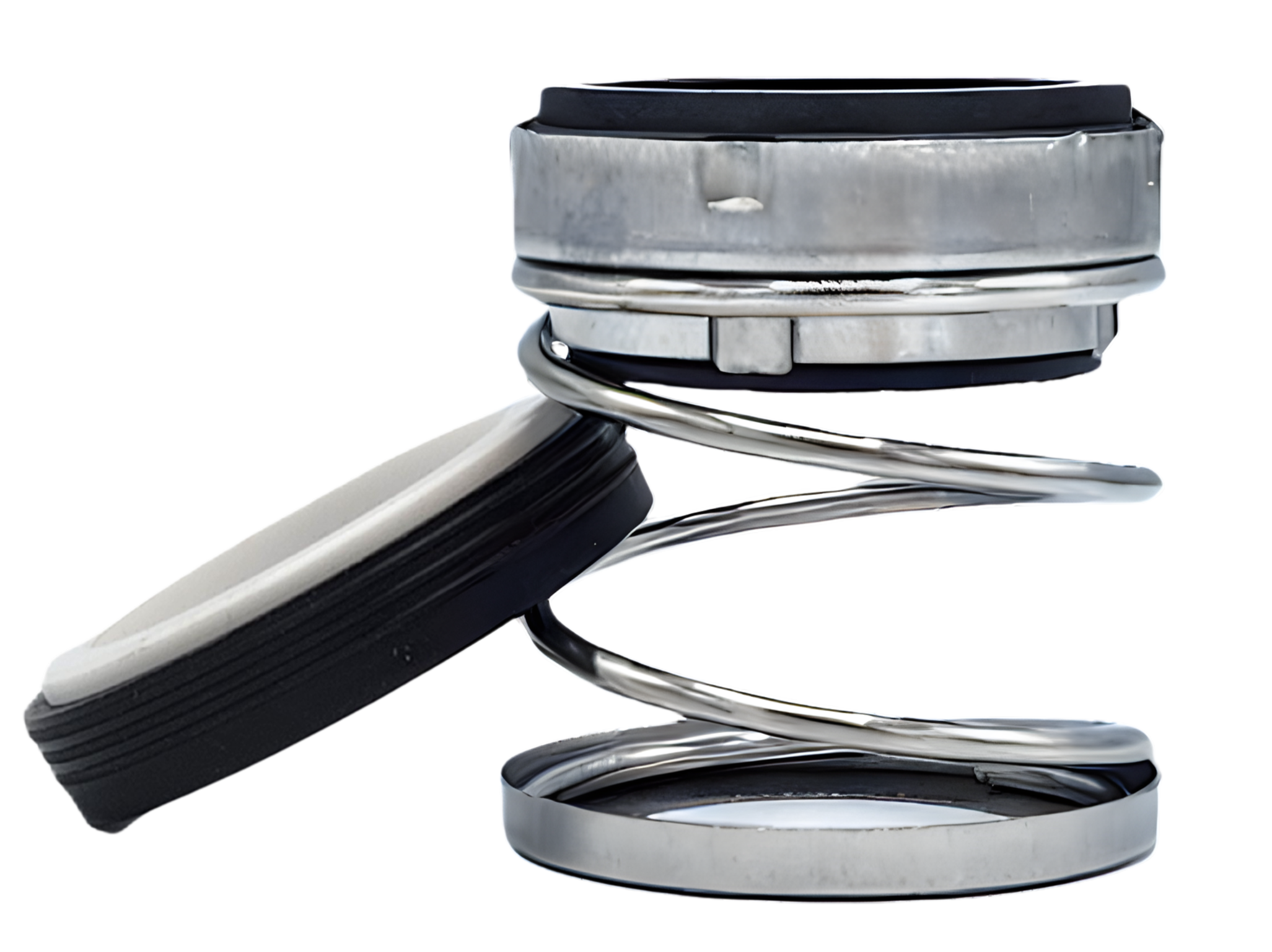

The MS-21-IMP is a versatile and cost-effective mechanical seal solution, designed for reliability and efficiency. Its diaphragm, parallel spring design allows for self-alignment, ensuring smooth operation even in challenging conditions. The positive drive mechanism via a drive band enhances stability and performance. Engineered to fit imperial shaft sizes, the MS-21-IMP can be configured to meet both US and European installation standards. For straight shafts, an optional setting collar is available to simplify installation and ensure precise positioning
EQUIVALENT TO
21
110
P04
MG921
Type 11
