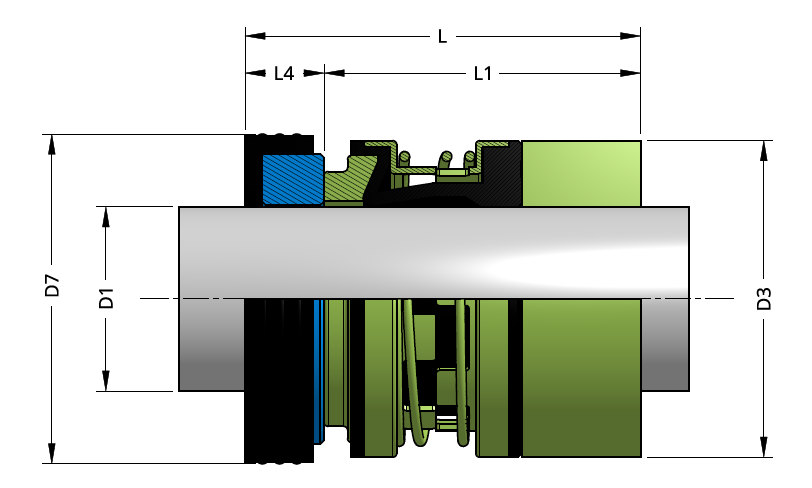

MS-2100K
OPERATING CONDITIONS
Temperature: -20°C to +200°C
Pressure: Up to 20 bar, 290 psi
Speed: Up to 15m/s, 3000 fpm
MATERIALS AVAILABLE
Rotary Face: Carbon or SiC
Stationary Seat: Ceramic or SiC
Elastomers: Nitrile, Viton or EPDM
Metal Parts: 304SS
STATIONARY SEATS
Standard Seat: CM-DIN
The MS-2100K is a durable Rubber Bellows Mechanical Seal engineered for demanding water-based applications, including wastewater treatment systems. Featuring intermeshing metal tags, it effectively protects the bellows from torsional strain, enhancing durability and performance. The MS-2100K is designed to industry-standard DIN lengths, ensuring compatibility with various system requirements. Its robust construction makes it a reliable choice for challenging environments where dependable sealing is essential.
EQUIVALENT TO
B052
2100
142
142DIN
