MS-502
OPERATING CONDITIONS
Temperature: -30°C to +200°C
Pressure: Up to 40 bar, 435 psi
Speed: Up to 13m/s, 2500 fpm
MATERIALS AVAILABLE
Rotary Face: Carbon, SiC or TC
Stationary Seat: Ceramic, SiC
Elastomers: Nitrile, Viton or EPDM
Metal Parts: 304SS
STATIONARY SEATS
Standard Seat: BO
Alternative Seat: BP, CM-DIN

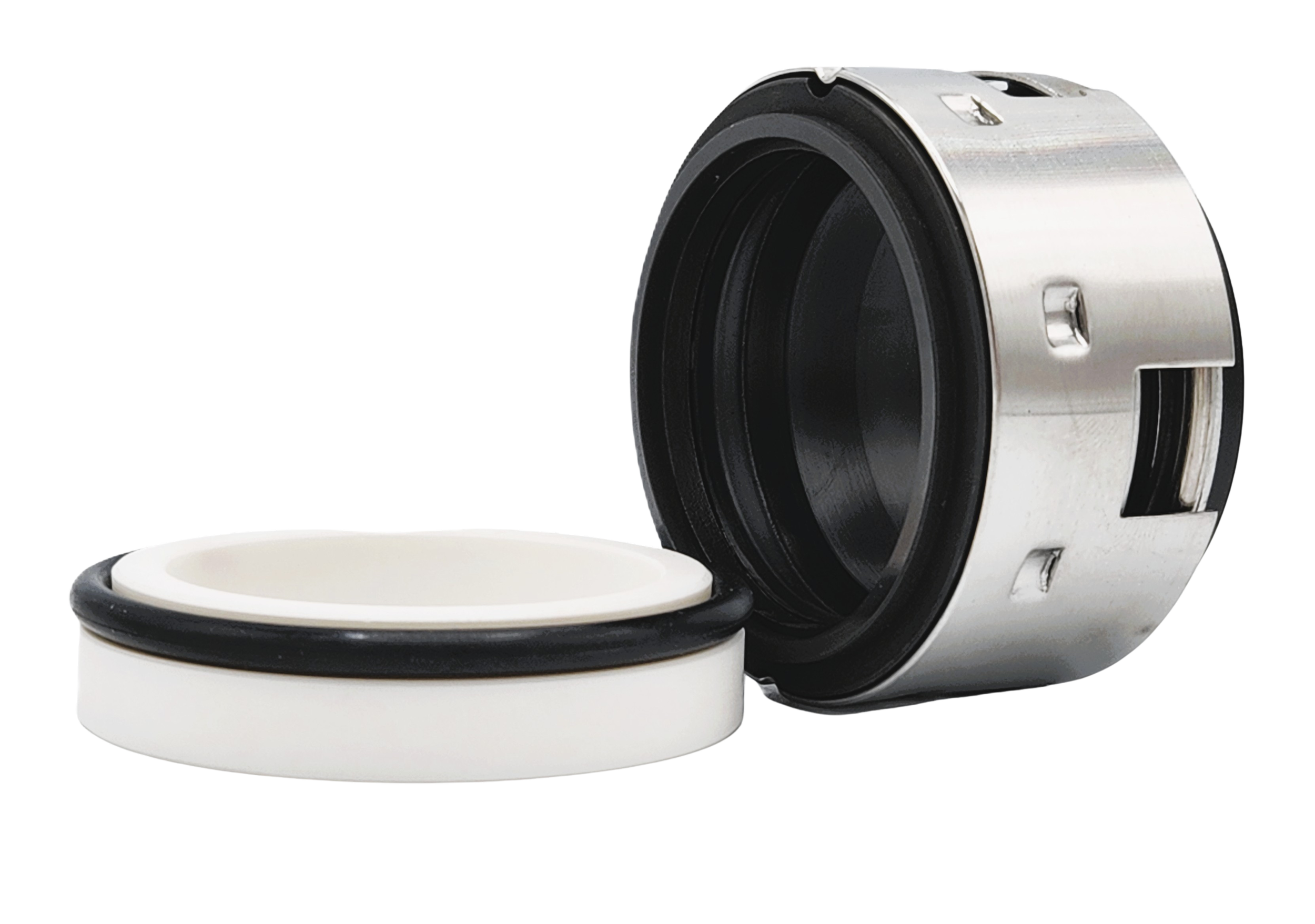

The MS-502 is a high-performance Rubber Bellows Mechanical Seal designed to excel in confined spaces and applications with limited gland depths. Engineered for versatility, it offers reliable sealing in general service conditions and delivers outstanding performance in hot water and mild chemical environments. Its flexible design ensures effective sealing under dynamic conditions, making it a dependable choice for various industrial applications requiring durability and ease of installation.
EQUIVALENT TO
B07/B07S/B07SL
1724/1724S/1724L
502
P250
