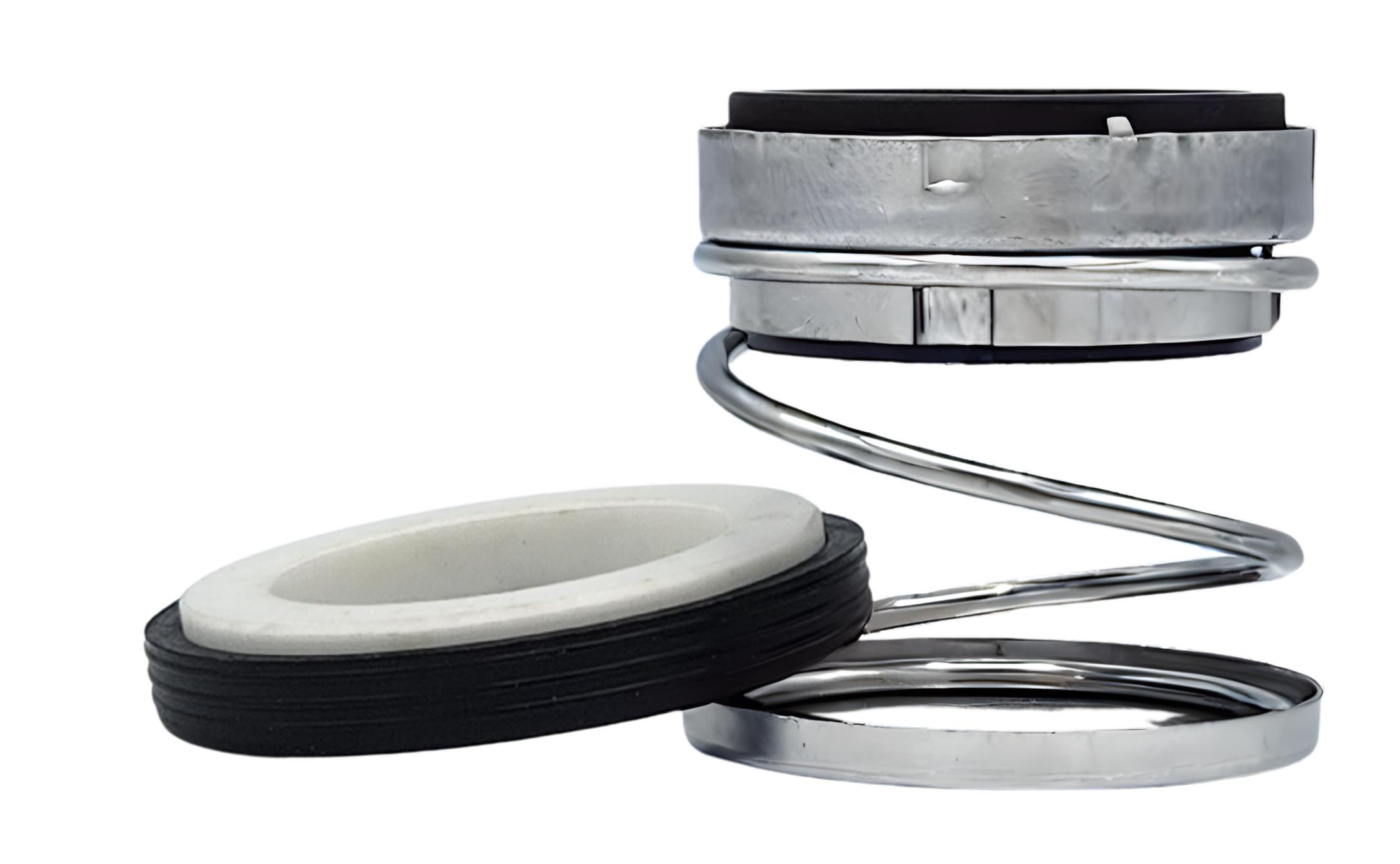

MS-560A
OPERATING CONDITIONS
Temperature: -20°C to +200°C
Pressure: Up to 10 bar, 145 psi
Speed: Up to 13m/s, 2500 fpm
MATERIALS AVAILABLE
Rotary Face: Carbon, SiC or TC
Stationary Seat: Ceramic or SiC
Elastomers: Nitrile, Viton or EPDM
Metal Parts: 304SS & 316SS
STATIONARY SEATS
Standard Seat: CM (Cup Mount)

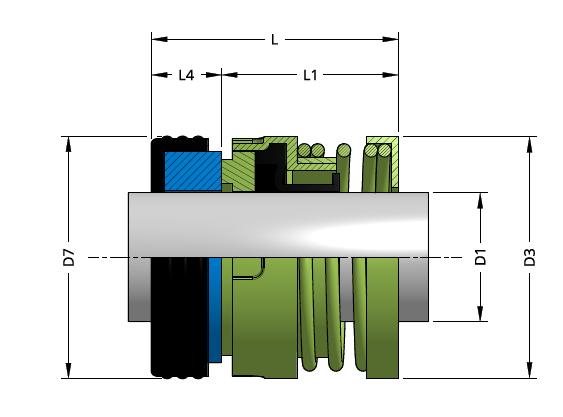

The MS-560A is designed specifically for the Japanese industry, offering the same reliable performance as the MS-21 but with modified dimensions, particularly in the seat cavity. Its compressed working length is shorter, making it ideal for compact installations. For straight shafts, an optional setting collar can be provided. The MS-560A is also commonly integrated into double or balanced seal arrangements, providing versatility for specialized pump applications.
EQUIVALENT TO
560
E560
