MS-58U-IMP
OPERATING CONDITIONS
Temperature: -40°C to +260°C
Pressure: Up to 24bar, 350psi
Speed: Up to 25m/s, 5000 fpm
MATERIALS AVAILABLE
Rotary Face: Carbon, SiC or TC
Stationary Seat: SiC or TC
Elastomers: Nitrile, Viton, EPDM or PTFE
Metal Parts: 304SS
STATIONARY SEATS
Standard Seat: OG
Alternative Seat: BP

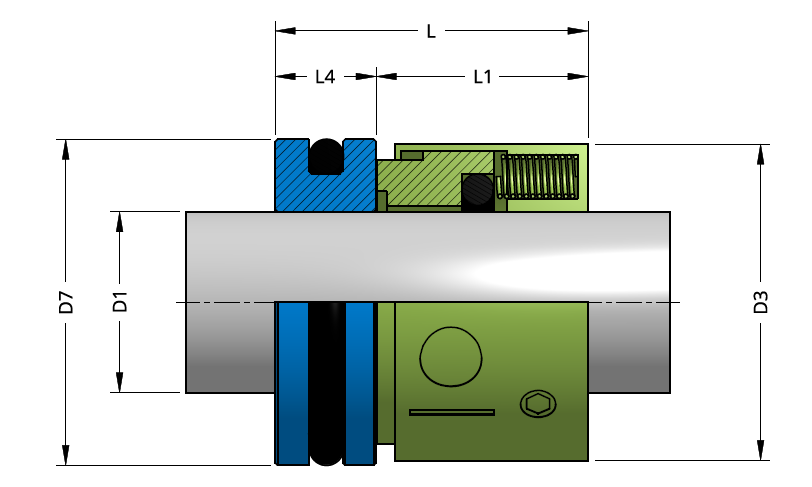

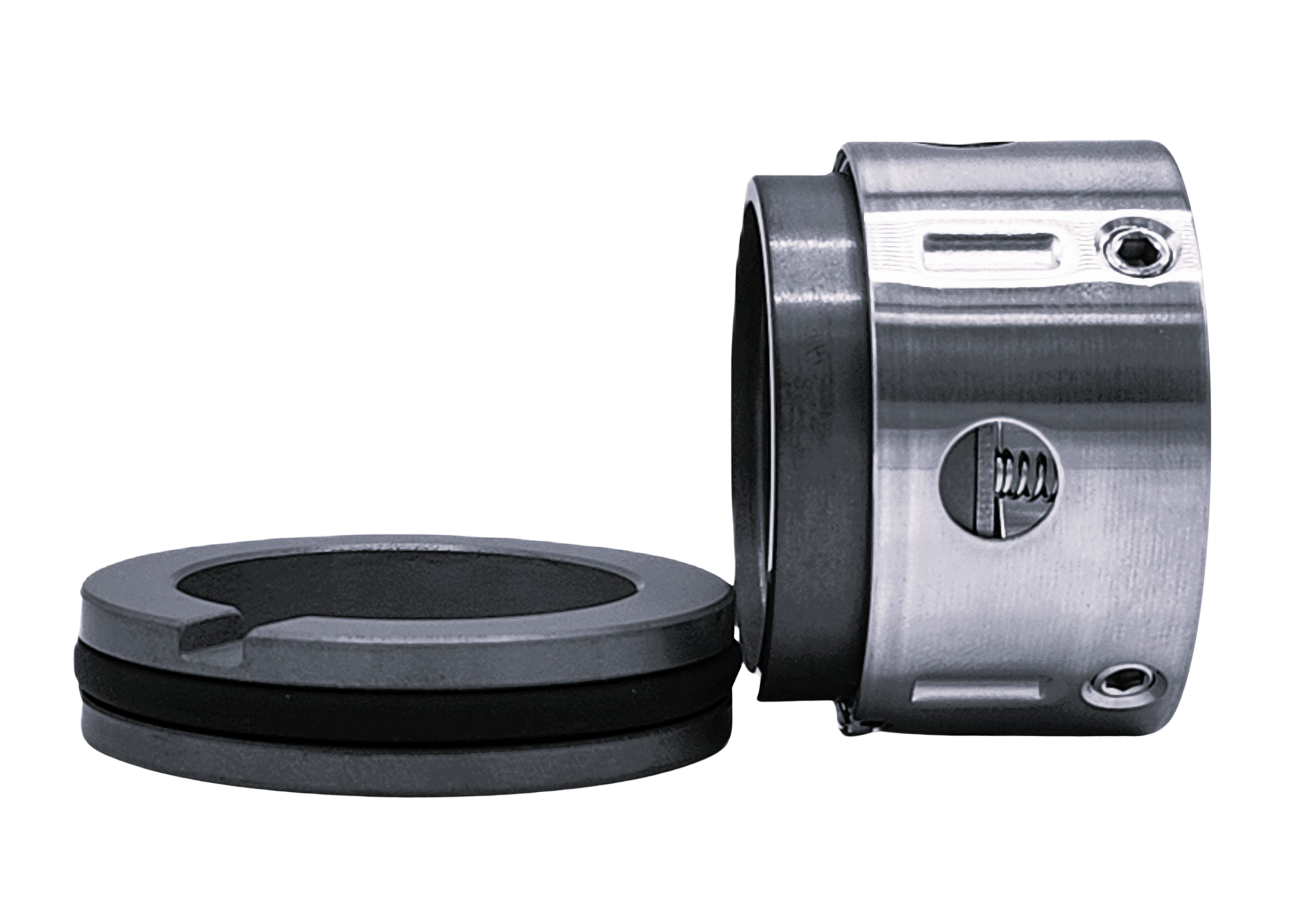

The MS-58U-IMP is a narrow, grubscrew driven mechanical seal. Originally developed with a PTFE wedge as the secondary seal. The 58U-IMP is now commonly supplied with cost-effective O-Ring alternative. For specialised applications, the original PTFE wedge design remains available upon request, ensuring flexibility for various sealing requirements. Its versatile design offers reliable performance in demanding chemical environments.
EQUIVALENT TO
81-T/9T
M05/M05S
1645/1645S
