MS-6
OPERATING CONDITIONS
Temperature: -20°C to +200°C
Pressure: Up to 5 bar, 75 psi
Speed: Up to 5m/s, 1000 fpm
MATERIALS AVAILABLE
Rotary Face: Carbon or SiC
Stationary Seat: Ceramic or SiC
Elastomers: Nitrile, Viton or EPDM
Metal Parts: 304SS

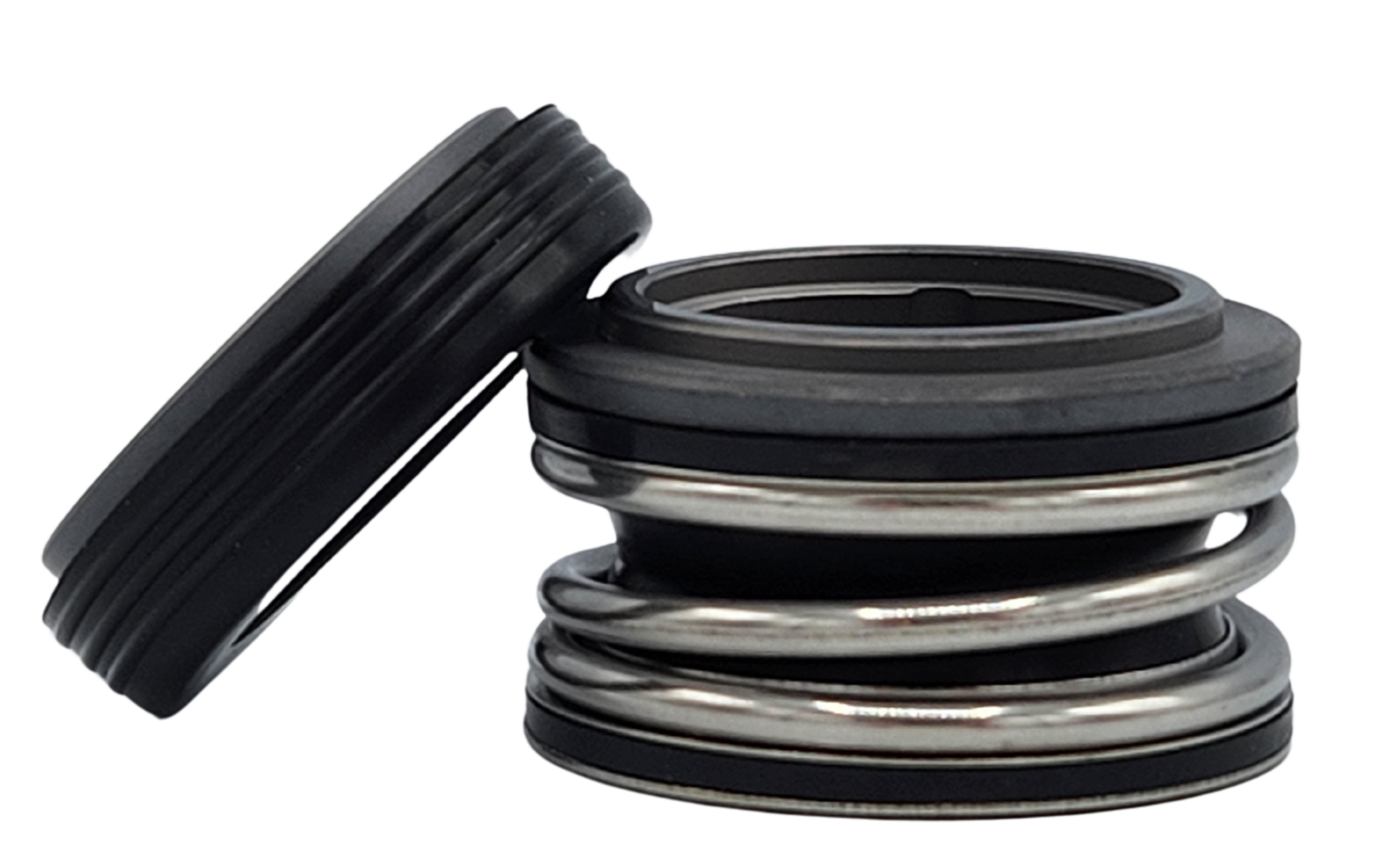

The MS-6 is a compact, mechanical seal featuring a single spring and elastomer bellows design. Ideal for general-purpose small diameter pumps, such as water pumps, it offers reliable performance and easy installation in a wide range of everyday applications.
EQUIVALENT TO
B04/B04U
BT-PNT
T6
160
60/65
