MS-68C
OPERATING CONDITIONS
Temperature: -30°C to +180°C
Pressure: Up to 4 bar, 60 psi
Speed: Up to 5m/s, 9000 fpm
MATERIALS AVAILABLE
Rotary Face: Carbon or SiC
Stationary Seat: Ceramic or SiC
Elastomers: Nitrile or Viton
Metal Parts: 304SS

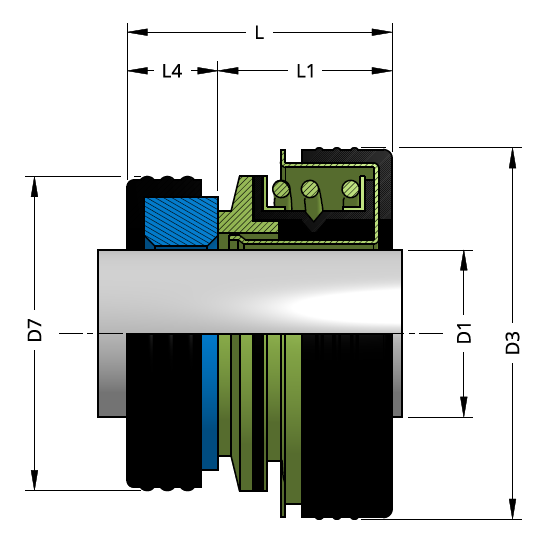

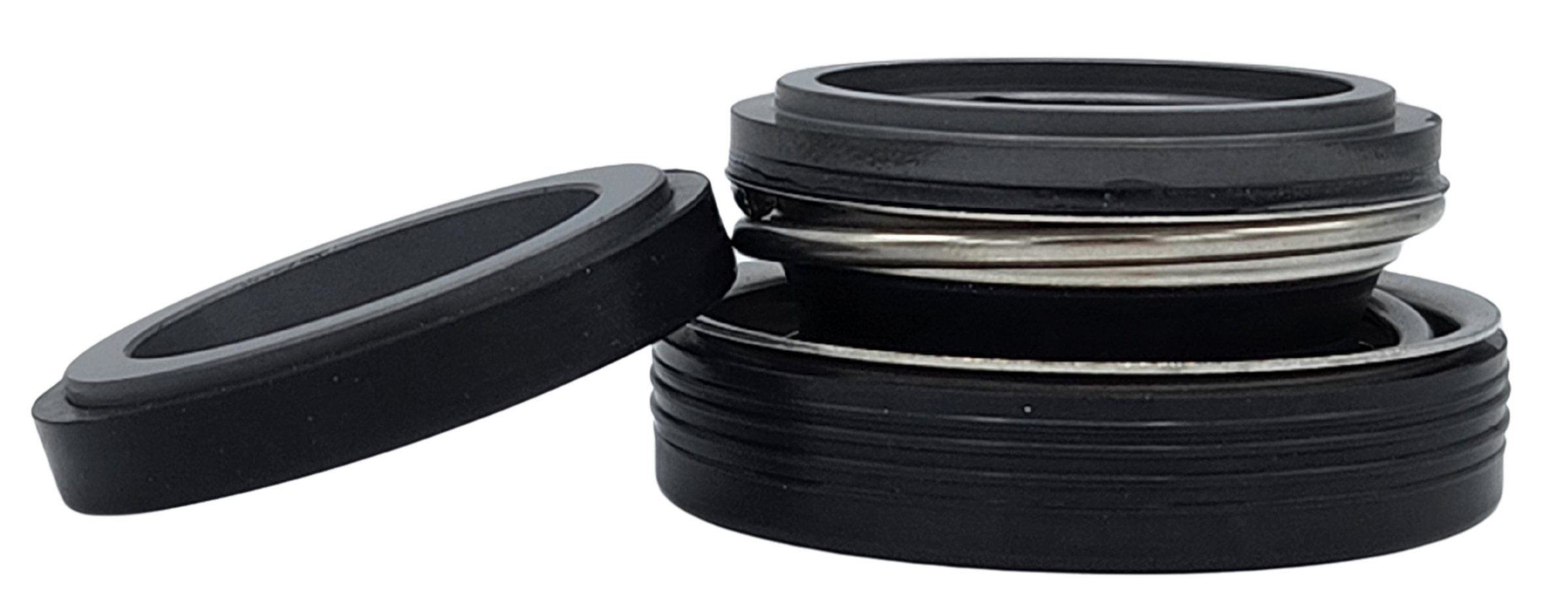

The MS-68C is a metric version of the MS-6A, designed for stationary mounting and press-fitted into the pump housing. Its sealing face tracks against the impeller back or a rotating seat. Ideal for high-speed applications, it ensures reliable performance without requiring specific shaft materials or surface finishes.
EQUIVALENT TO
B03U
BT-A2
T6A
