MS-6A
OPERATING CONDITIONS
Temperature: -40°C to +150°C
Pressure: Up to 4 bar, 60 psi
Speed: Up to 45m/s, 9000 fpm
MATERIALS AVAILABLE
Rotary Face: Carbon or SiC
Stationary Seat: Ceramic or SiC
Elastomers: Nitrile or Viton
Metal Parts: 304SS

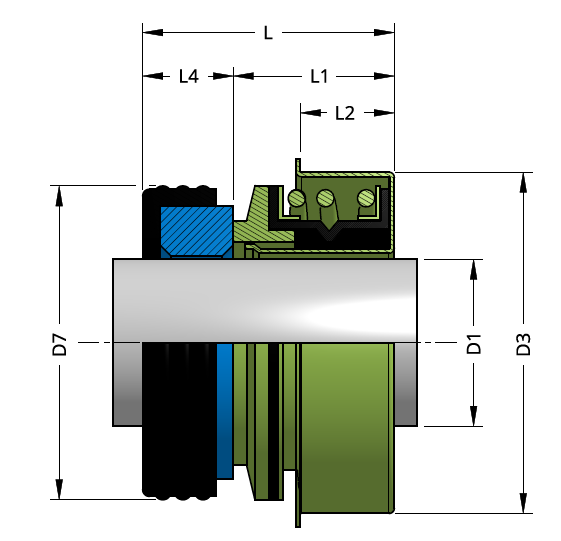

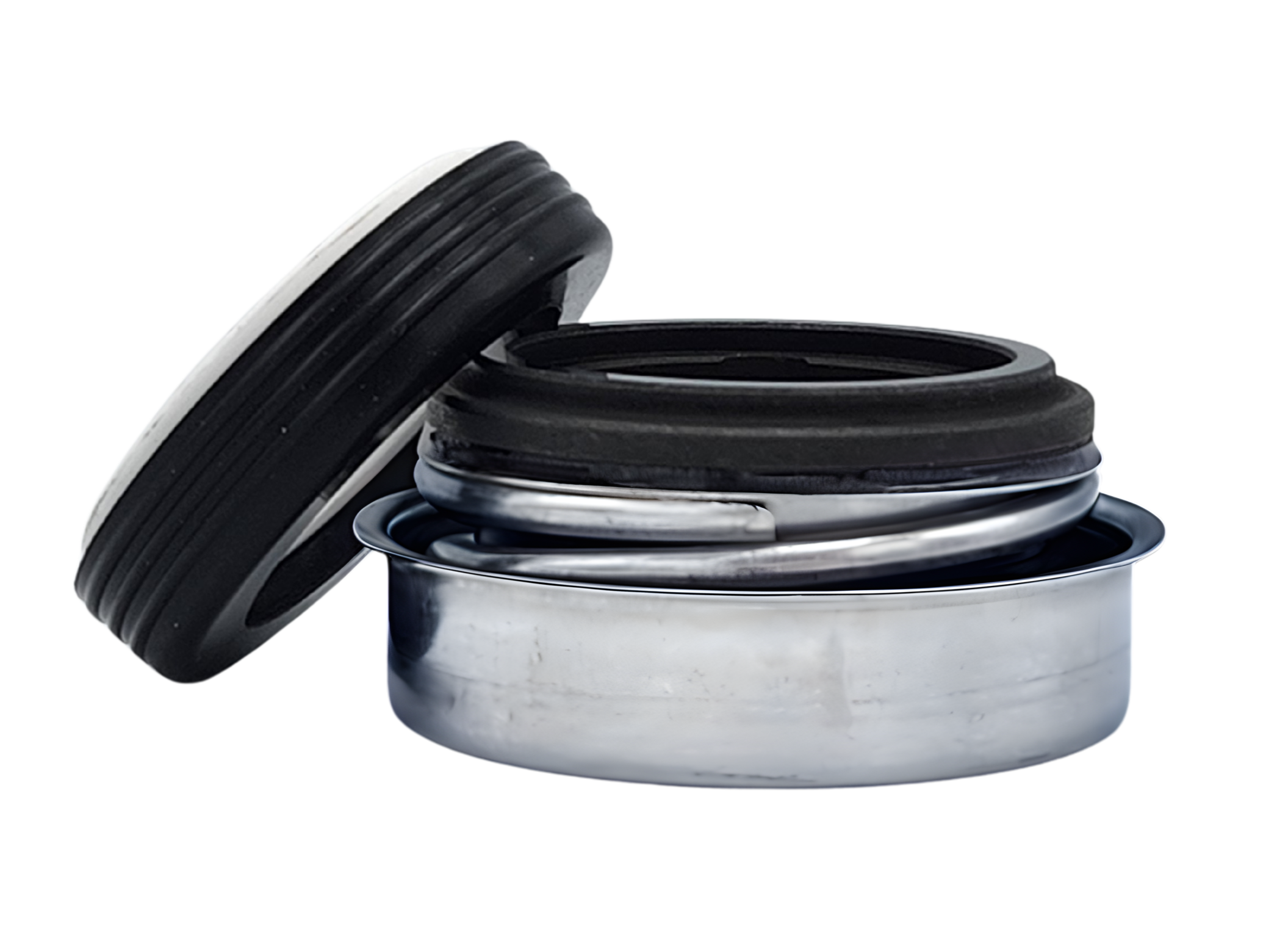

The MS-6A is a stationary-mounted seal that is press-fitted into the pump housing. Its sealing face tracks against the impeller back or a rotating seat, Ideal for high-speed applications, it offers reliable performance without direct shaft sealing, reducing the need for specific shaft materials or surface finishes.
EQUIVALENT TO
B03U
BT-A2
T6A
