MS-80
OPERATING CONDITIONS
Temperature: -30°C to +200°C
Pressure: Up to 10 bar, 145 psi
Speed: Up to 5.5m/s, 1100 fpm
MATERIALS AVAILABLE
Rotary Face: Stainless Steel (SS), Carbon, SiC or TC
Stationary Seat: Carbon, SiC or TC
Elastomers: Viton, Nitrile or EPDM
Metal Parts: 304SS

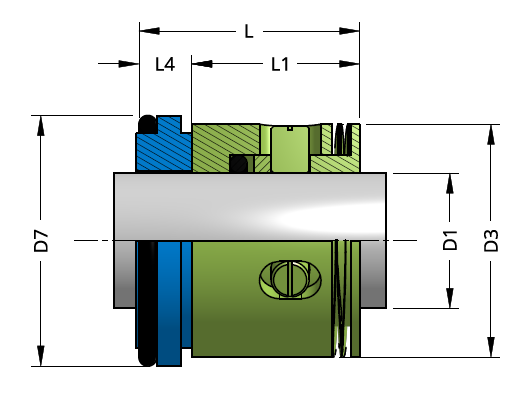

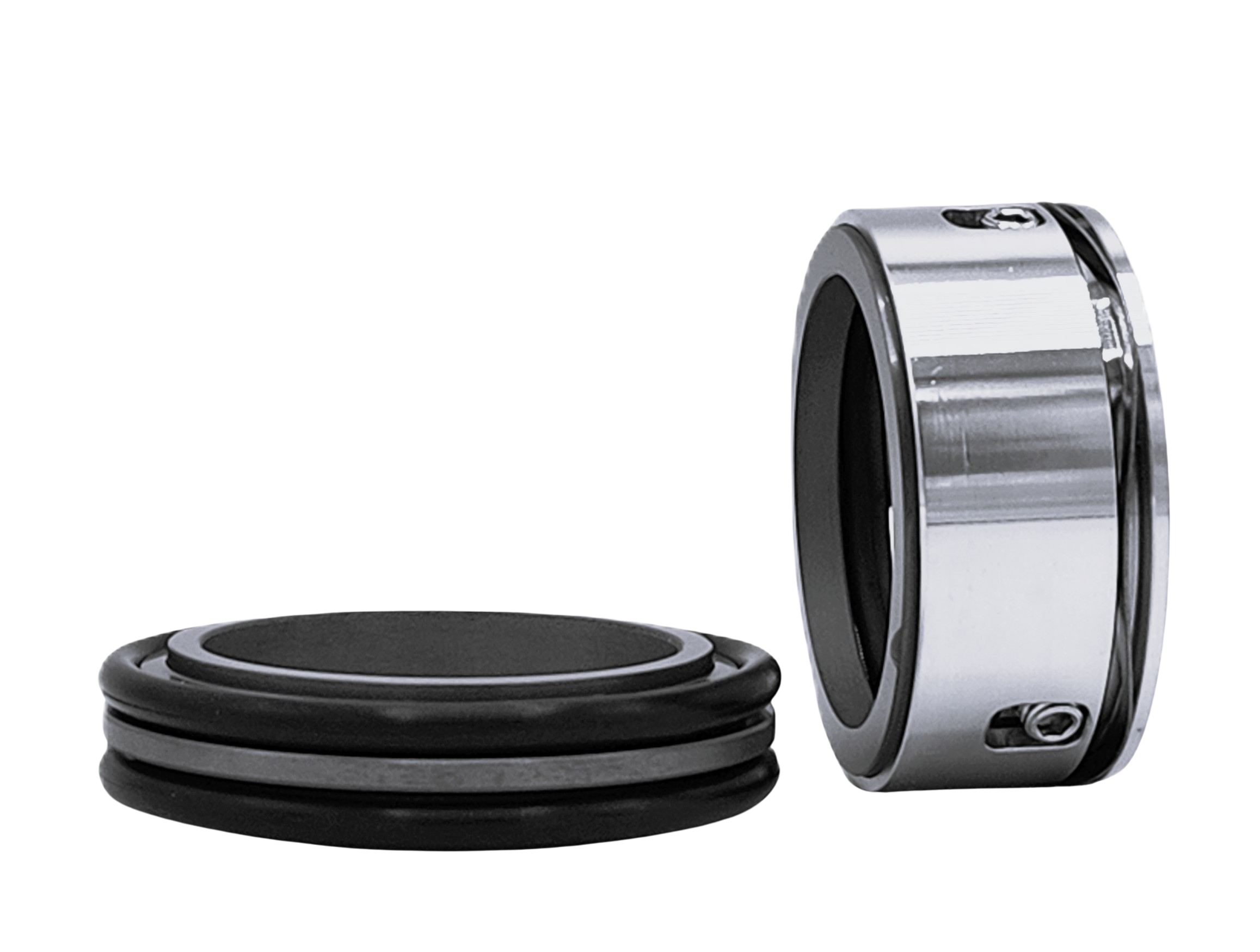

The MS-80 is a compact cartridge seal featuring a robust positive drive for reliable bi-directional rotation. Designed to meet the stringent requirements of the food industry, it combines hygienic design with durable materials. The MS-80 offers flexibility with both internal and external mounting options, ensuring versatile performance.
EQUIVALENT TO
T80
W01U
W011U
