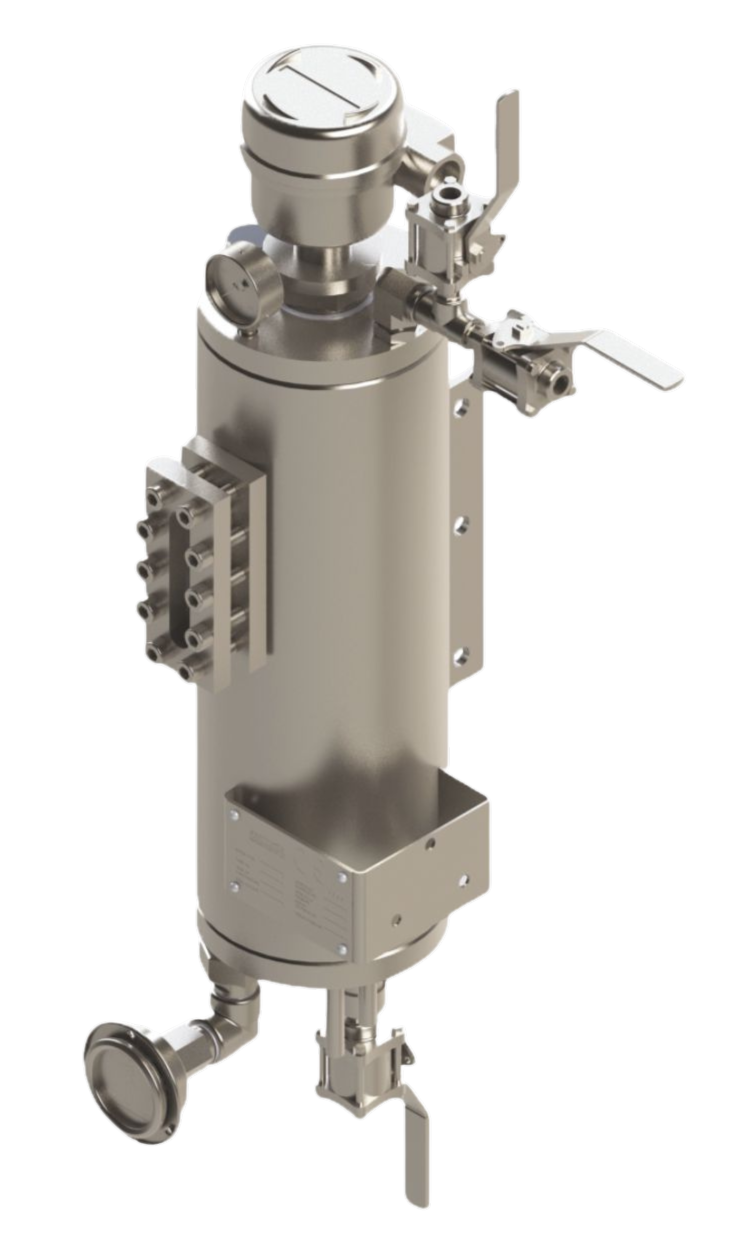

MS-BFS 1016 / MS-BFS 1010
PRODUCT DESCRIPTION
* Circulation in accordance with API 682 / ISO 21049: Plan 52, Plan 53A
* BFS1016 system is employed for applications in sealing systems with a
wide variety of operating parameters for supplying buffer/barrier fluid
to double and tandem mechanical seals. The BFS1016/1010 system is
available in standard sizes with flat ends, sigh-glasses for level
monitoring and with or without cooling coil. the BFS1016/1010 system
is equipped as a standard with all the necessary system connections
and brackets.
TECHNICAL FEATURES
* Available with or without cooling coil
* All connections of the systems are side face
* Compact design of the system allows low space requirements
* Modular design combination available with a wide variety of system
components and instruments selection possible such as, level switch,
circulation pump, hand refill pump, thermometer, base frame etc.
* Design allows for varied applications due to construction in stainless
steel with borosilicate sight-glasses
FUNCTIONAL DESCRIPTION
The BFS system performs all the basic functions of a buffer/barrier system for the operation of double seals:
* To pressurise the buffer chamber
* Leakage compensation
* Buffer/barrier fluid is circulated by thermosiphon effect or external
circulation system.
* To cool the seal
* To selectively absorb product leakage and prevent dry running
(tandem arrangement)
* Use compressed air or nitrogen for pressurisation.
