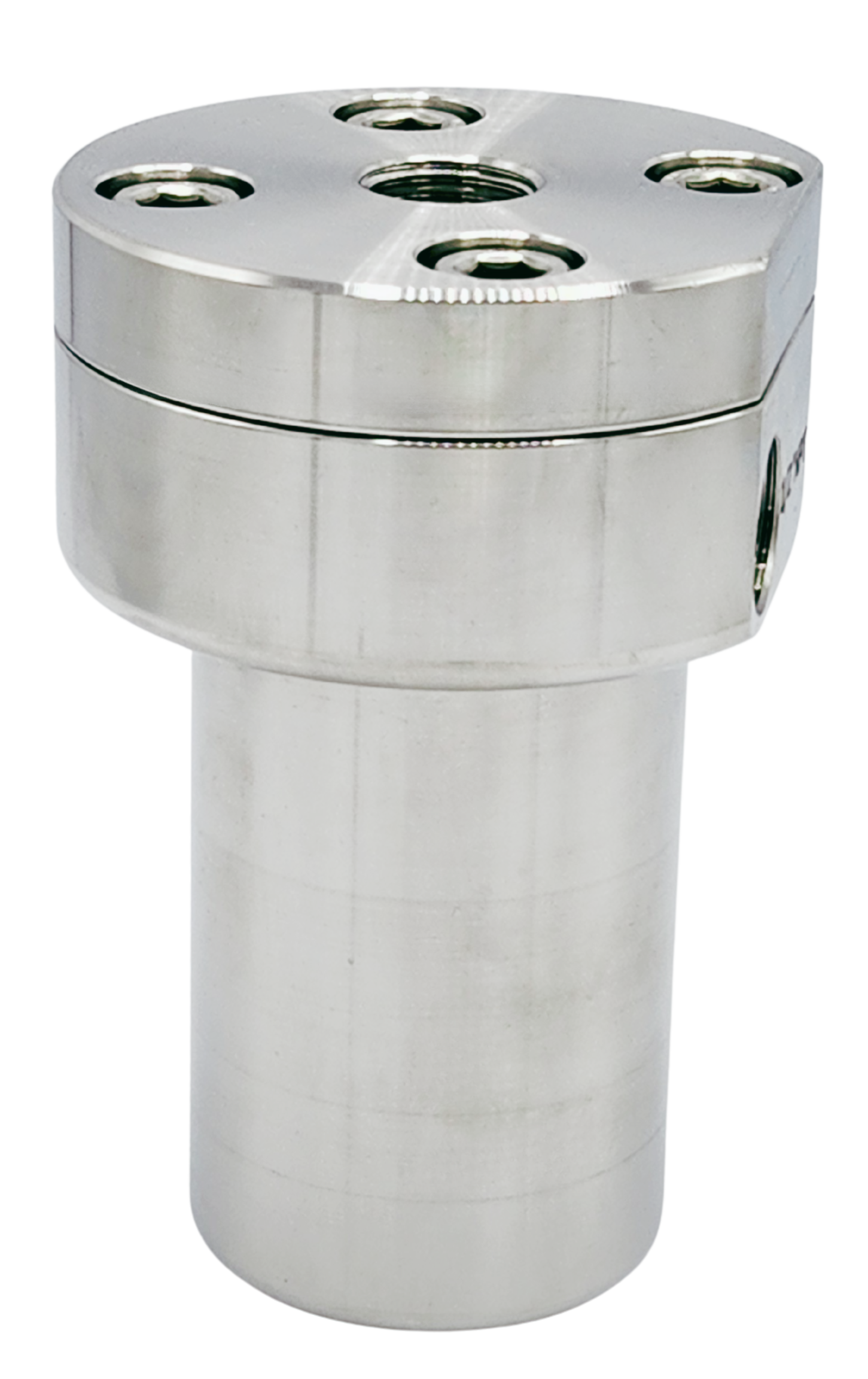

MS-CS
FUNCTIONAL DESCRIPTION
Cyclone separators of the CS range are used to clean mainly aqueous liquids containing dirt and solids (e.g. in circulation systems of sewage, sludge,or pipeline pumps). The best possible filtration efficiency is achieved when the specific weight of the solids is much higher than that of the carrier liquid, and when the differential pressure is as large as possible within the permissible pressure range (min. 1.7 bar in accordance with API 682). The viscosity of the medium is also a factor that needs to be taken into account.
PRODUCT DESCRIPTION
* Circulation in accordance with API 682 / ISO 21049: Plan 41
* The CS range is available in varied versions i.e cyclone separator with
replaceable insert made of ceramic or cast version of the cyclone
separator or cyclone separator for high flow rates and high pressures.
TECHNICAL FEATURES
*Construction design for operating pressure up to 200 bar
* Hassle free maintenance is achieved in operation with high reliability,
because the dirt is automatically conveyed to the suction nozzle of
the pump
* High filtration efficiency
* Compact design is achieved because of low space requirement, in
addition to the option of block-type design with integrated flange
connections
* Design allows for varied applications due to construction in stainless
steel with replaceable insert made of ceramic
