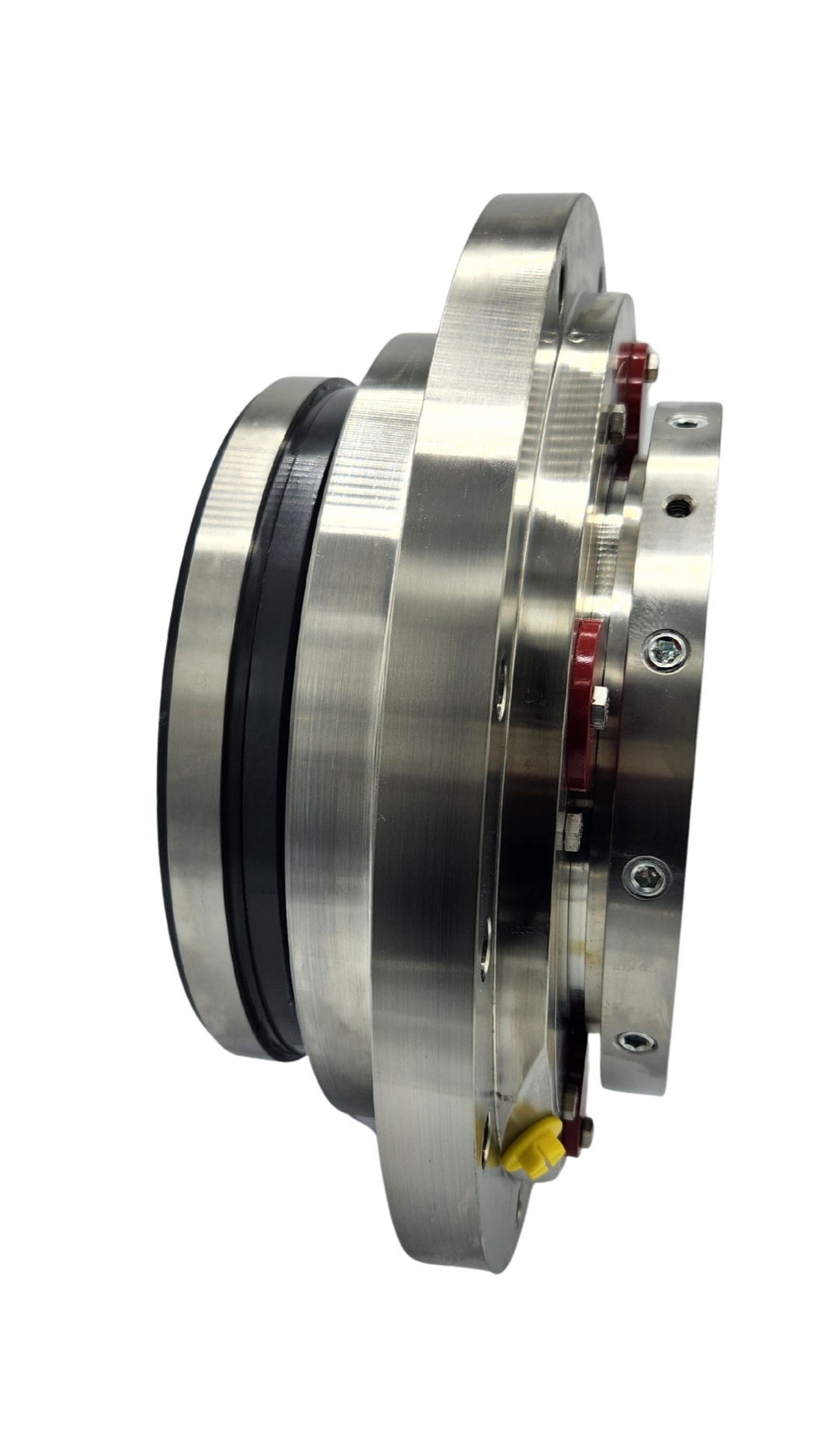

MS-BRS
* Single & Double seal configuration
* Balanced Design
* Independent of direction of rotation
* Cartridge construction
* Stationary design with multiple springs
* Seat arrangement is designed behind the impeller
* Seat design is rotary
* Specially designed sleeve to protect the springs from contamination
* Variable designs available with guide sleeve for applications with or
without quench
PRODUCT DESCRIPTION
* Accommodates shaft deflections due to stationary design
* Designed to handle media containing solids
* O-Ring is dynamically loaded to prevent shaft damage
* Can operate under vacuum without locking the seat
* Pumping device available for increased efficiency in circulation
* Springs are product-protected to avoid contamination
TECHNICAL FEATURES
Temperature: t = -20°C...+160°C (-4°F... +320°F)
Pressure: p₁ ) = 16 bar (230 PSI)
Speed: = 10 m/s (33 ft/s)
*) For operations under vacuum, it is necessary to arrange for
quenching on the atmosphere side.
PERFORMANCE CAPABILITIES
MATERIALS AVAILABLE
Seal Face: Silicon Carbide (Q1, Q2)
Seat: Silicon Carbide (Q1, Q2)
