MS-MG1
Temperature: -20°C to +200°C
Pressure: Up to 12 bar, 174 psi
Speed: Up to 10m/s, 2000 fpm
MATERIALS AVAILABLE
Rotary Face: Carbon or SiC
Stationary Seat: SiC
Elastomers: Nitrile, Viton or EPDM
Metal Parts: 304SS or 316SS
STATIONARY SEATS
Standard Seat: G6, G60
Alternative Seat: G4, G9
OPERATING CONDITIONS

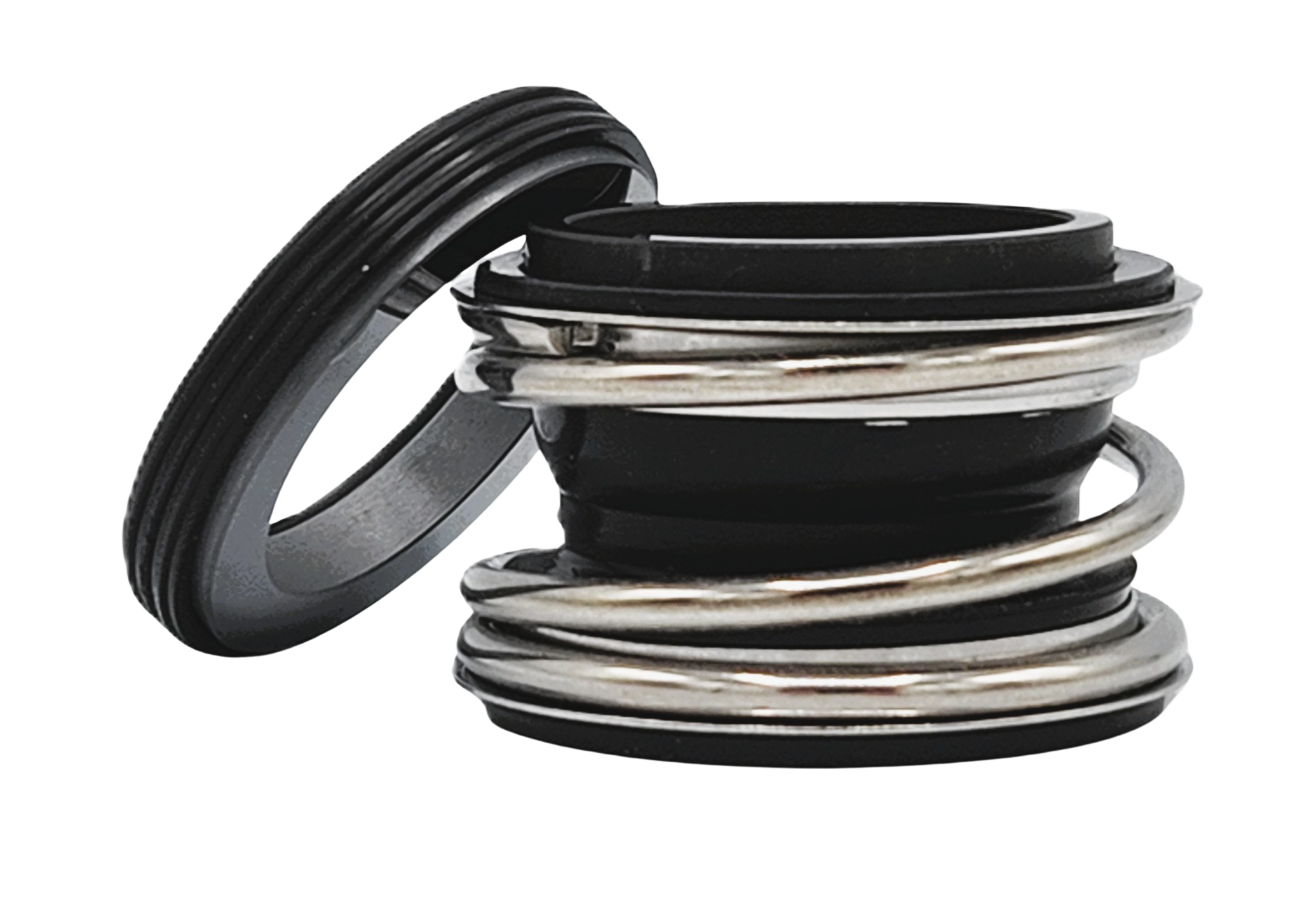

The MS-MG1 is a robust Rubber Bellows Mechanical Seal designed for reliable performance in demanding applications. Driven by an elastomer bellows, it offers effective friction drive while providing full length shaft protection. Its flexible design accommodates substantial axial movement, making it highly tolerant to shaft deflections. The MS-MG1 is particularly well suited for applications involving media with solid particles, ensuring dependable sealing performance in challenging operating conditions.
EQUIVALENT TO
B02/B02S/B02SL/B02SS
190
MG1
19
