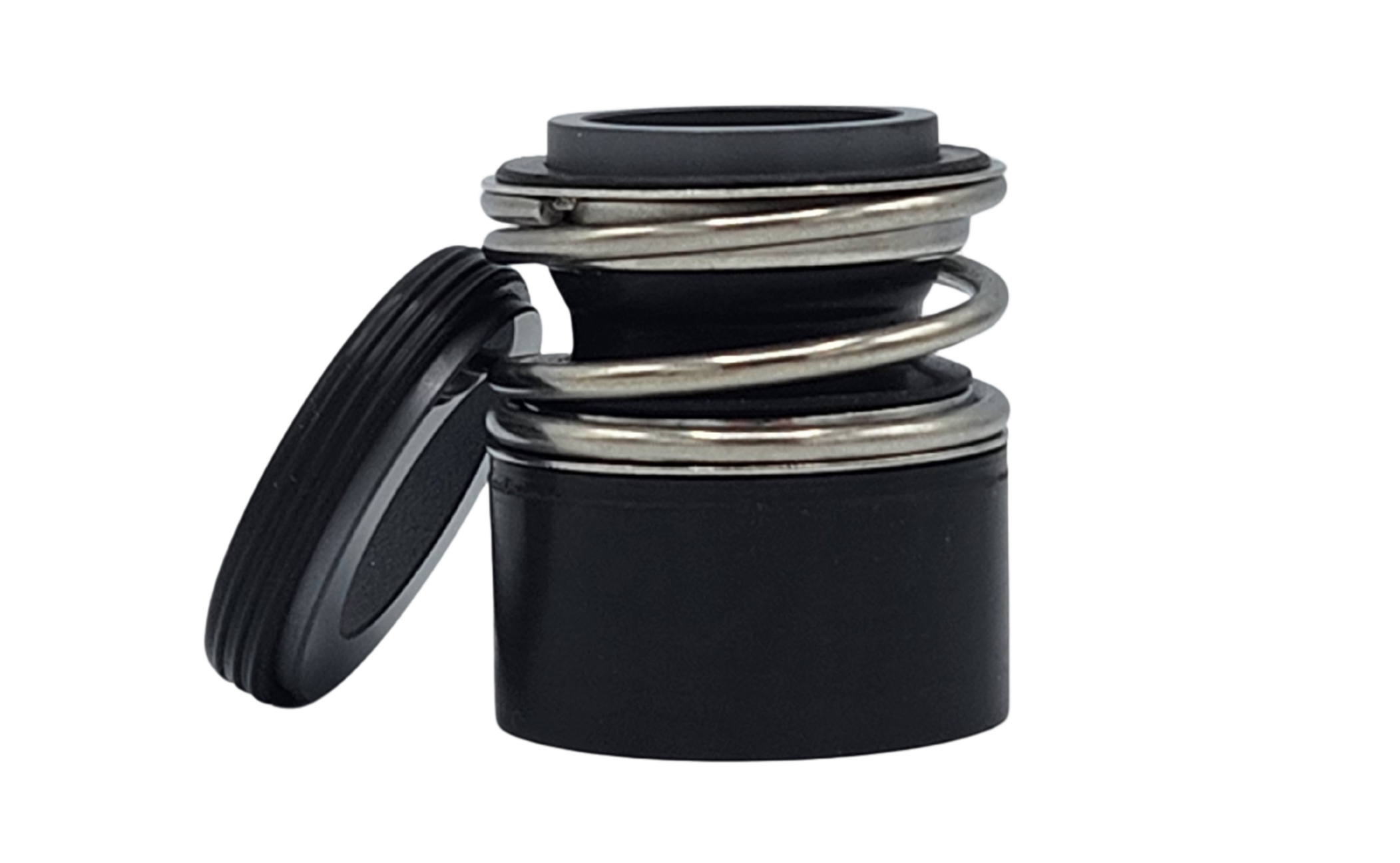

MS-MG13

The MS-MG13 is a robust Rubber Bellows Mechanical Seal designed for reliable performance in demanding applications. Driven by an elastomer bellows, it offers effective friction drive while providing full length shaft protection. Its flexible design accommodates substantial axial movement, making it highly tolerant to shaft deflections. The MS-MG13 is particularly well suited for applications involving media with solid particles, ensuring dependable sealing performance in challenging operating conditions.

B013/B013S/B013SL/B013SS
193
MG13

MS-MG13 Data Sheet

OPERATING CONDITIONS

Temperature: -20°C to +200°C
Pressure:
Up to 12 bar, 174 psi
Speed:
Up to 10m/s, 2000 fpm

MATERIALS AVAILABLE

Rotary Face: Carbon or SiC
Stationary Seat:
SiC
Elastomers:
Nitrile, Viton or EPDM
Metal Parts: 304SS or 316SS

STATIONARY SEATS

Standard Seat: G6, G60
Alternative Seat: G4, G9

EQUIVALENT TO
