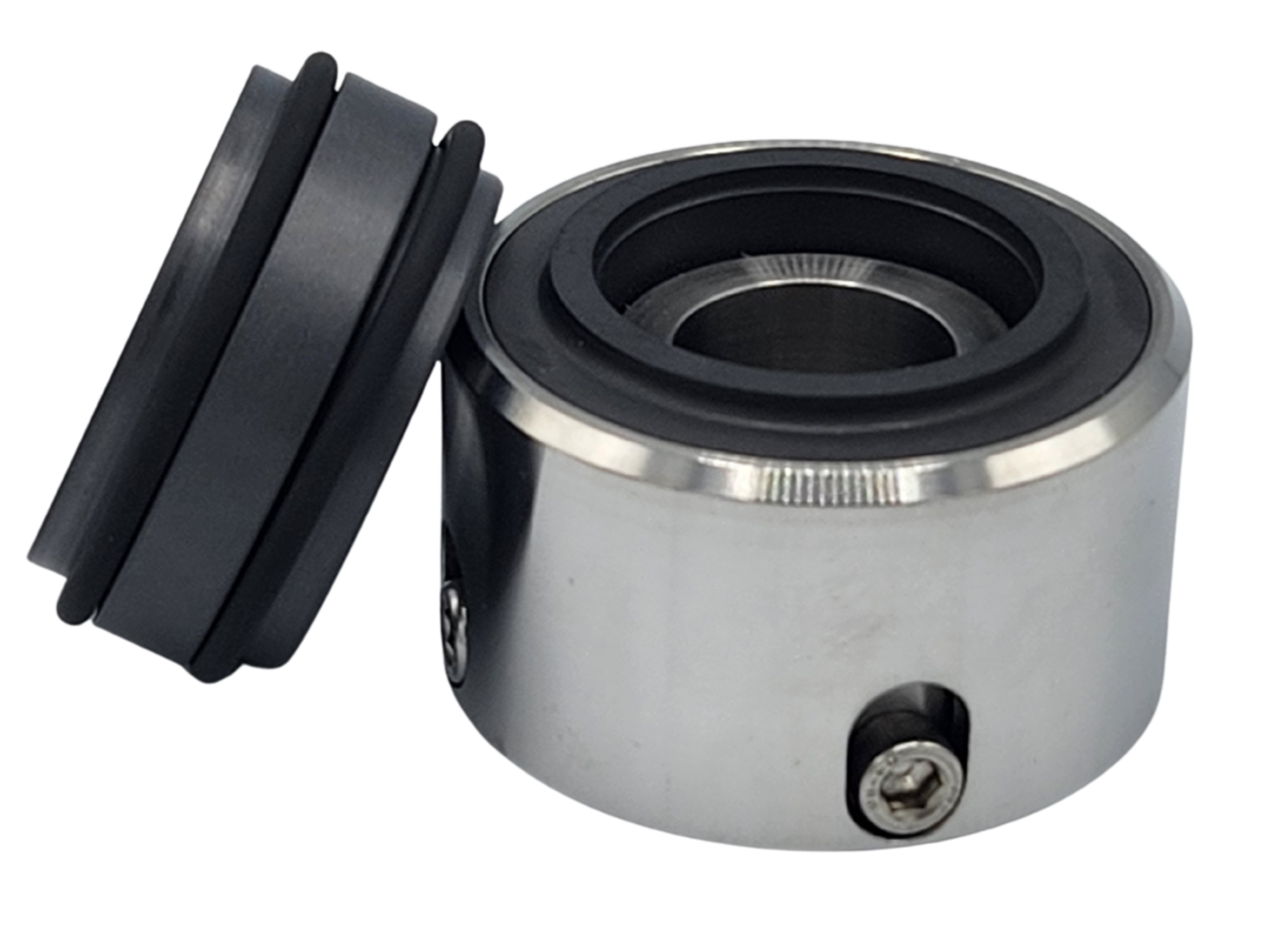

MS-MXS
PRODUCT DESCRIPTION
* Agitator Seal - Dry Running
* Single and Dual Seal Configuration
* Balanced Design
* Independent of direction of rotation
* Cartridge construction
* Designed for dry running applications
* Designed for top entry vessels, side entry can be provided upon
request
* Rotary unit with multiple springs
TECHNICAL FEATURES
* Overall connecting dimensions are tailored to the customer’s
specifications
* Can accommodate reverse pressure
* The seal design is unique as it closes due to hydraulic product
pressure as well as overlaying barrier pressure
* Rugged design to ensure long-term reliability and operating life
* Seals are assembled in cartridge construction for easy fitment and are
also available in component design as per customer specification
Temperature: t = -20°C...+150°C (-4°F... +302°F)
Pressure: p₁ = vacuum…6 bar (87 PSI)
Speed: = 0…2m/s (0…6 ft/s)
Permissible axial movement: ± 1.5mm
Radial movement: ± 1.5mm
MATERIALS AVAILABLE
Seal Face: Carbon graphite, FDA conform
Seat: Silicon Carbide (Q1)
Secondary Seals and Metal Parts: According to application and customer’s specifications
