MS-R2
OPERATING CONDITIONS
Temperature: -20°C to +200°C
Pressure: Up to 10 bar, 145 psi
Speed: Up to 10m/s, 2000 fpm
MATERIALS AVAILABLE
Rotary Face: Stainless Steel (SS)
Stationary Seat: Carbon, SiC or TC
Elastomers: Viton, Nitrile or EPDM
Metal Parts: 304SS

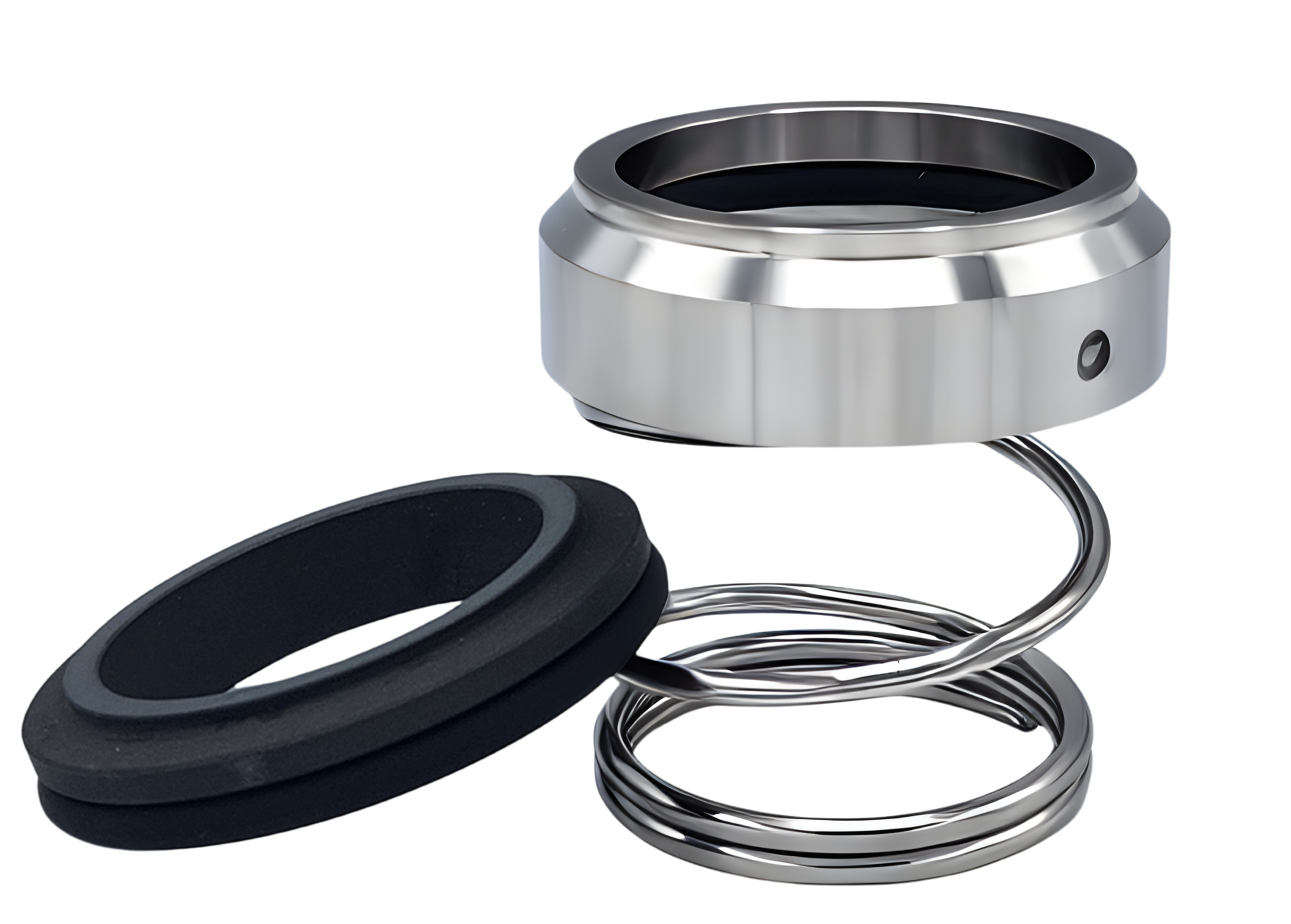

The MS-R2 is a versatile and cost-effective mechanical seal designed for general-purpose applications. Suitable for water, food, chemical products, and hydrocarbons, it offers reliable performance across various industries. Its simple installation and availability in multiple material combinations make it an adaptable solution for diverse sealing needs.
EQUIVALENT TO
Simplex
Roten2
T03
BT-RN
12
42
