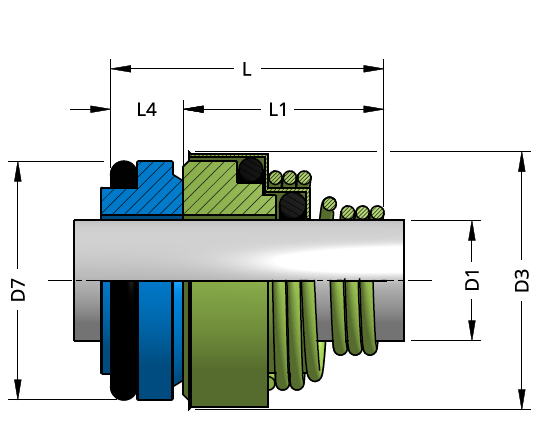

MS-R3
OPERATING CONDITIONS
Temperature: -20°C to +200°C
Pressure: Up to 10 bar, 145 psi
Speed: Up to 10m/s, 2000 fpm
MATERIALS AVAILABLE
Rotary Face: Carbon, Ceramic or SIC
Stationary Seat: Carbon, Ceramic or SiC
Elastomers: Viton, Nitrile or EPDM
Metal Parts: 304SS

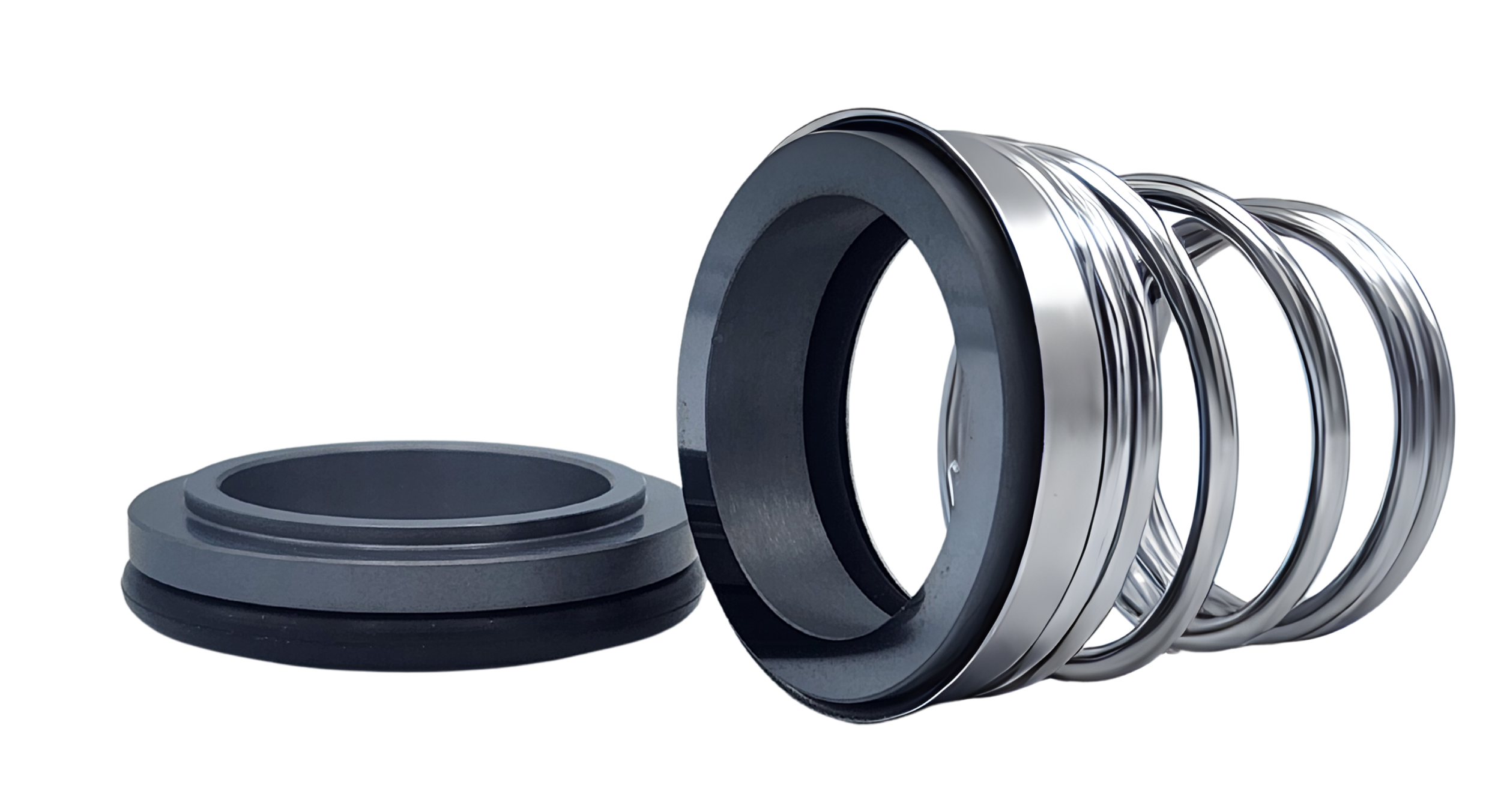

The MS-R3 is an economical and versatile mechanical seal with interchangeable components. Its standard Carbon-Ceramic face combination offers reliable performance in various applications, including those with dirty liquids. Featuring stainless steel metal parts and multiple elastomer options, the MS-R3 provides flexibility for a wide range of operating conditions.
EQUIVALENT TO
Simplex
Roten 3
T04
BT-FN
13
43
