MS-TYPE 1
OPERATING CONDITIONS
Temperature: -40°C to +200°C
Pressure: Up to 12.5 bar, 180 psi
Speed: Up to 18m/s, 3500 fpm
MATERIALS AVAILABLE
Rotary Face: Carbon, SiC or TC
Stationary Seat: Ceramic, SiC or TC
Elastomers: Viton
Metal Parts: 304SS
STATIONARY SEATS
Standard Seat: OG
Alternative Seat: CM-IMP

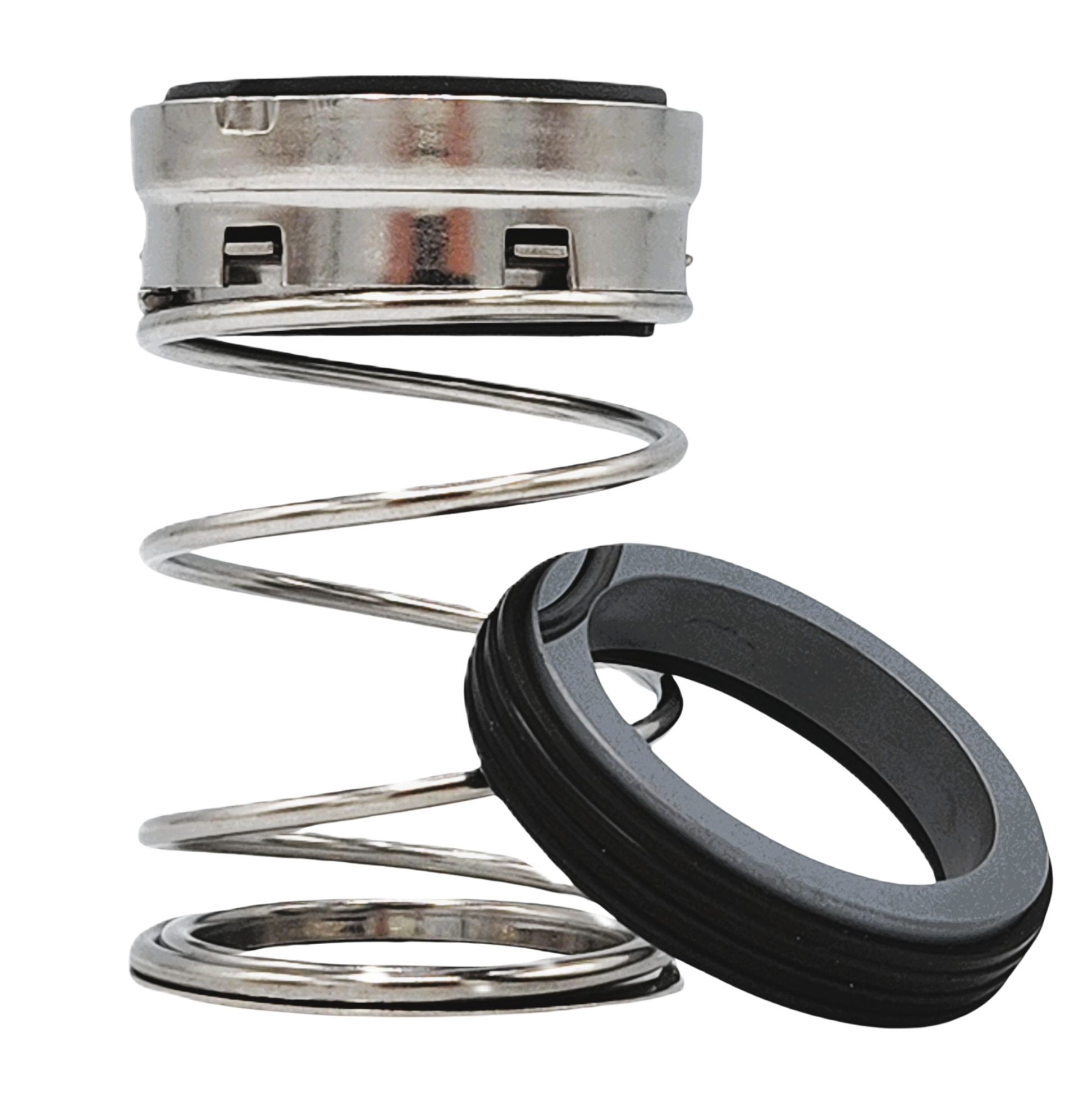

The MS-Type 1 is an unbalanced, single-spring mechanical seal with bi-directional elastomer bellows design. It is suitable for water, chemicals and corrosive materials. Commonly used in pulp, food processing, chemical processing and wastewater industries. It offers reliable sealing in diverse applications.
EQUIVALENT TO
Type 1
P05U
MG901
