MS-TYPE 2
OPERATING CONDITIONS
Temperature: -40°C to +200°C
Pressure: Up to 12.5 bar, 180 psi
Speed: Up to 18m/s, 3500 fpm
MATERIALS AVAILABLE
Rotary Face: Carbon, SiC or TC
Stationary Seat: Ceramic, SiC or TC
Elastomers: Viton
Metal Parts: 304SS
STATIONARY SEATS
Standard Seat: OG
Alternative Seat: CM-IMP

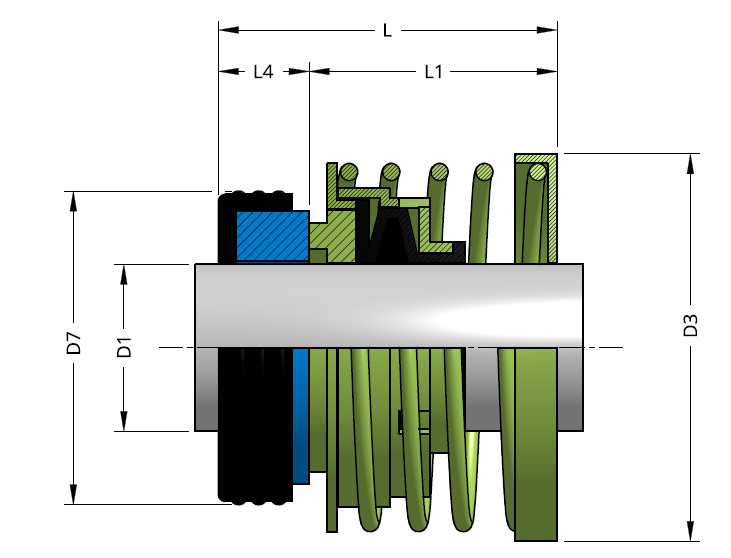

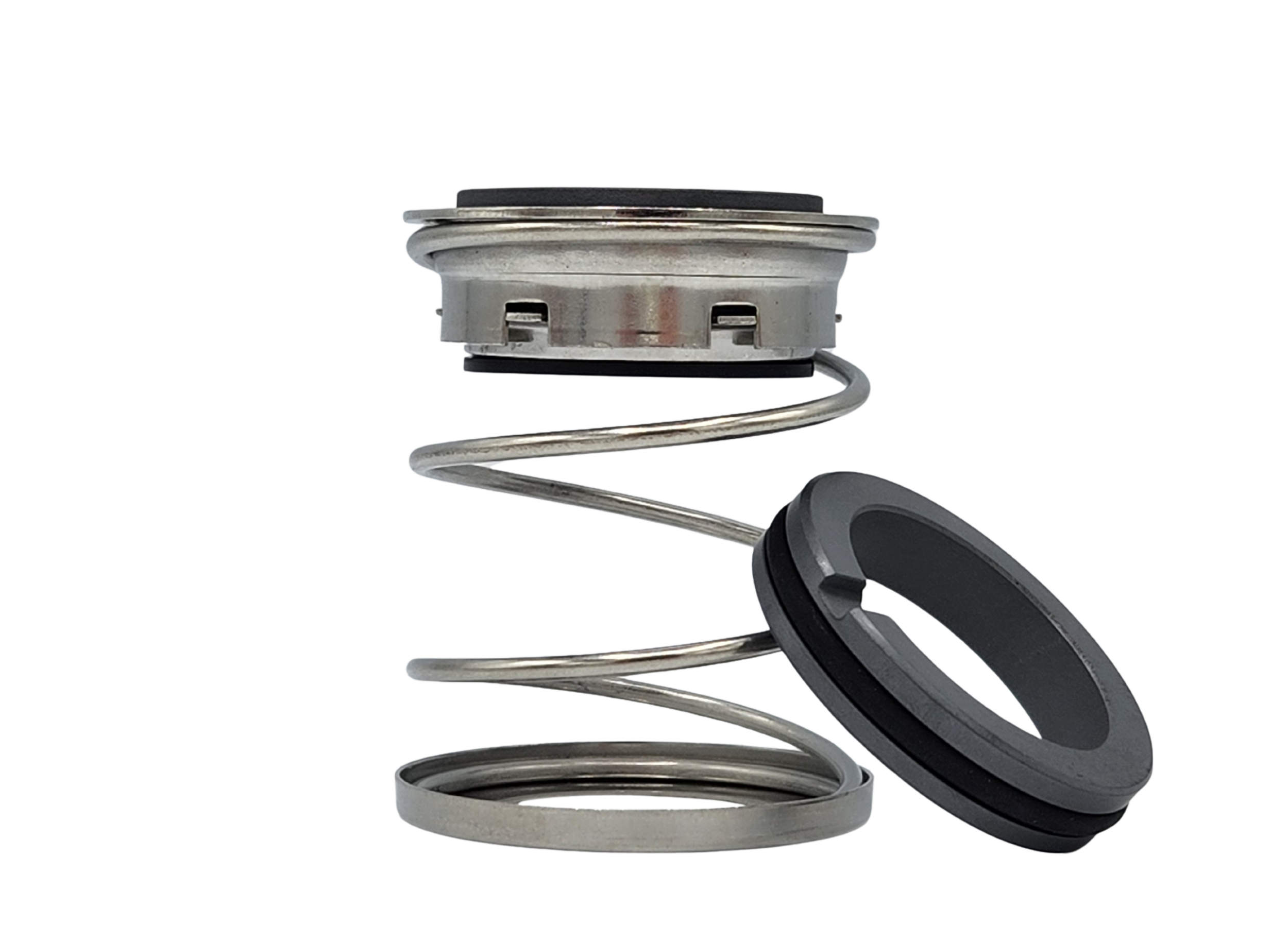

The MS-Type 2 is an unbalanced, single-spring mechanical seal with a non-clogging, bi-directional elastomer bellows design. Its ideal for sealing water, refrigeration fluids, oils and chemicals. Commonly used in pulp, food processing, wastewater and chemical processing industries, it ensures reliable performance in demanding environments.
EQUIVALENT TO
Type 2
P04U
MG921
