MS-U320N
OPERATING CONDITIONS
Temperature: -30°C to +260°C
Pressure: Up to 10 bar, 145 psi
Speed: Up to 10m/s, 2000 fpm
MATERIALS AVAILABLE
Rotary Face: Carbon
Stationary Seat: SiC
Elastomers: Viton, Nitrile or EPDM
Metal Parts: 304SS
STATIONARY SEATS
Standard Seat: G9
Alternative Seat: G4, G6

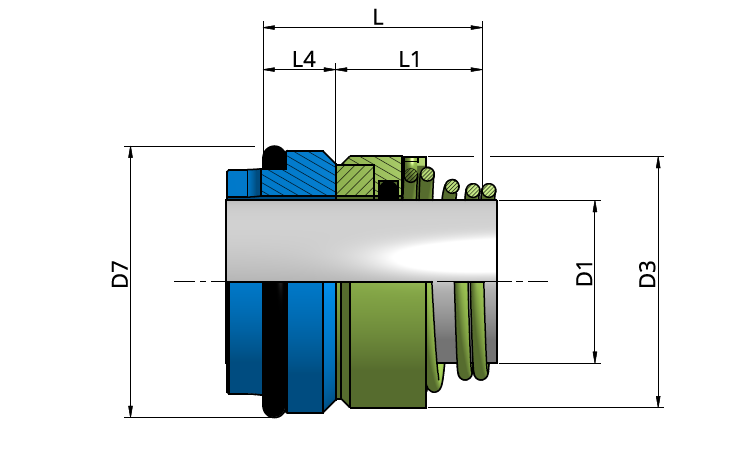

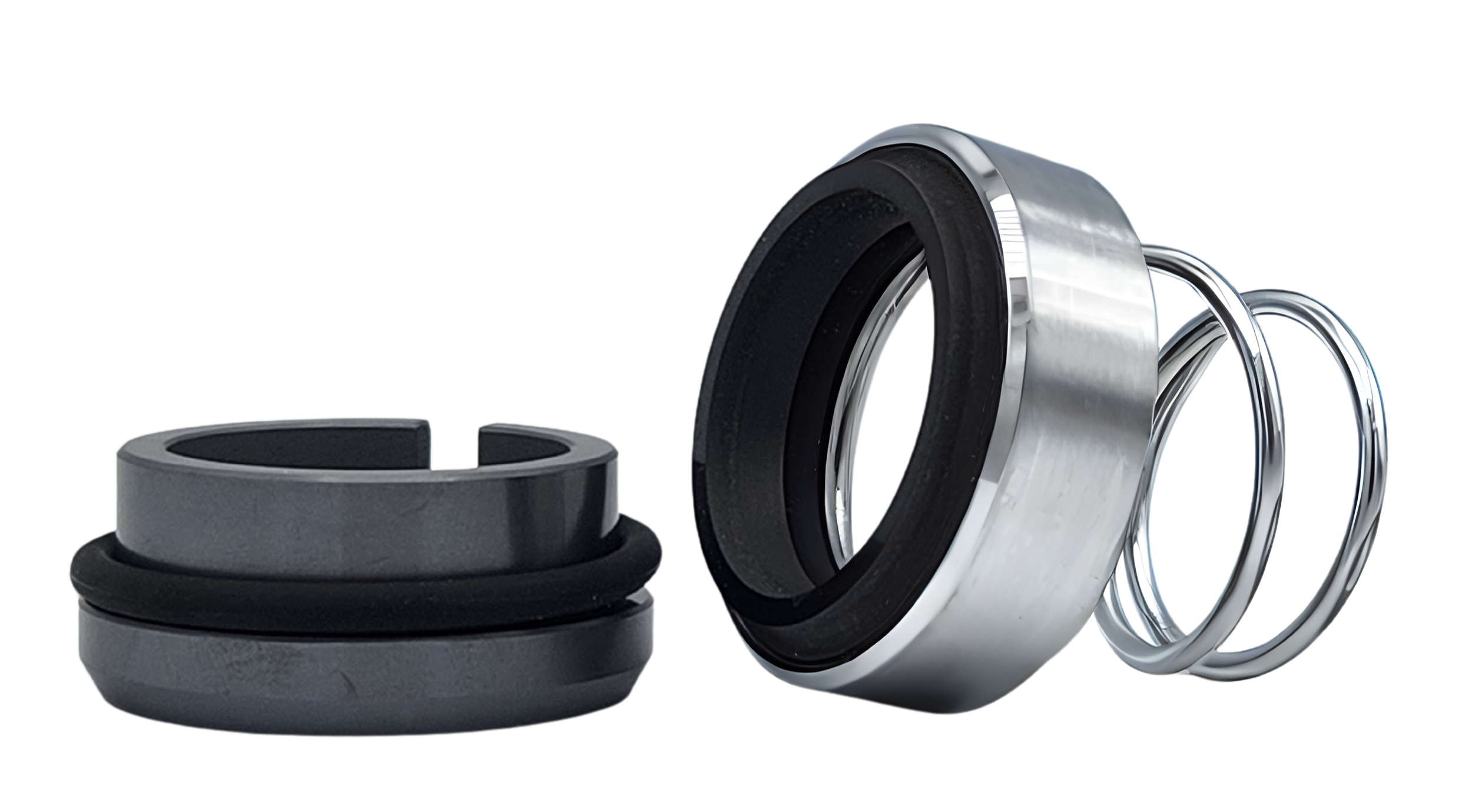

The MS-U320N is a single-end, unbalanced mechanical seal designed for plain shafts. Featuring a rotating conical spring and direction-dependent rotation, it ensures reliable performance in clean water pumps, circulating pumps, and vacuum pumps. Its spring transmission design provides effective sealing for various general-purpose applications.
EQUIVALENT TO
M2N
M32
T01
BS32
