MS-U700N
PERFORMANCE CAPABILITIES
Temperature: -50°C to +220°C
Pressure: p₁ = 25 bar (363 PSI)
Speed: 20m/s (66ft/s)
MATERIALS AVAILABLE
Seal Face: SiC
Stationary Seat: Carbon or SiC
Elastomers: Viton, Nitrile or EPDM
Metal Parts: 316SS or SAF2205
STATIONARY SEATS
Standard Seat: G9
Alternative Seat: G4, G6 or G16

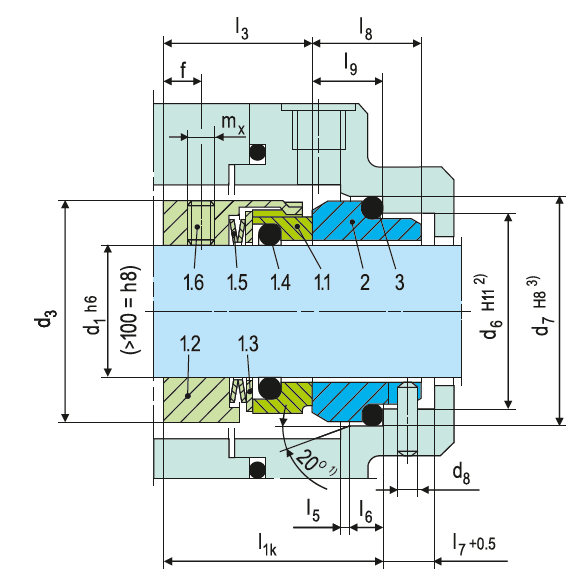

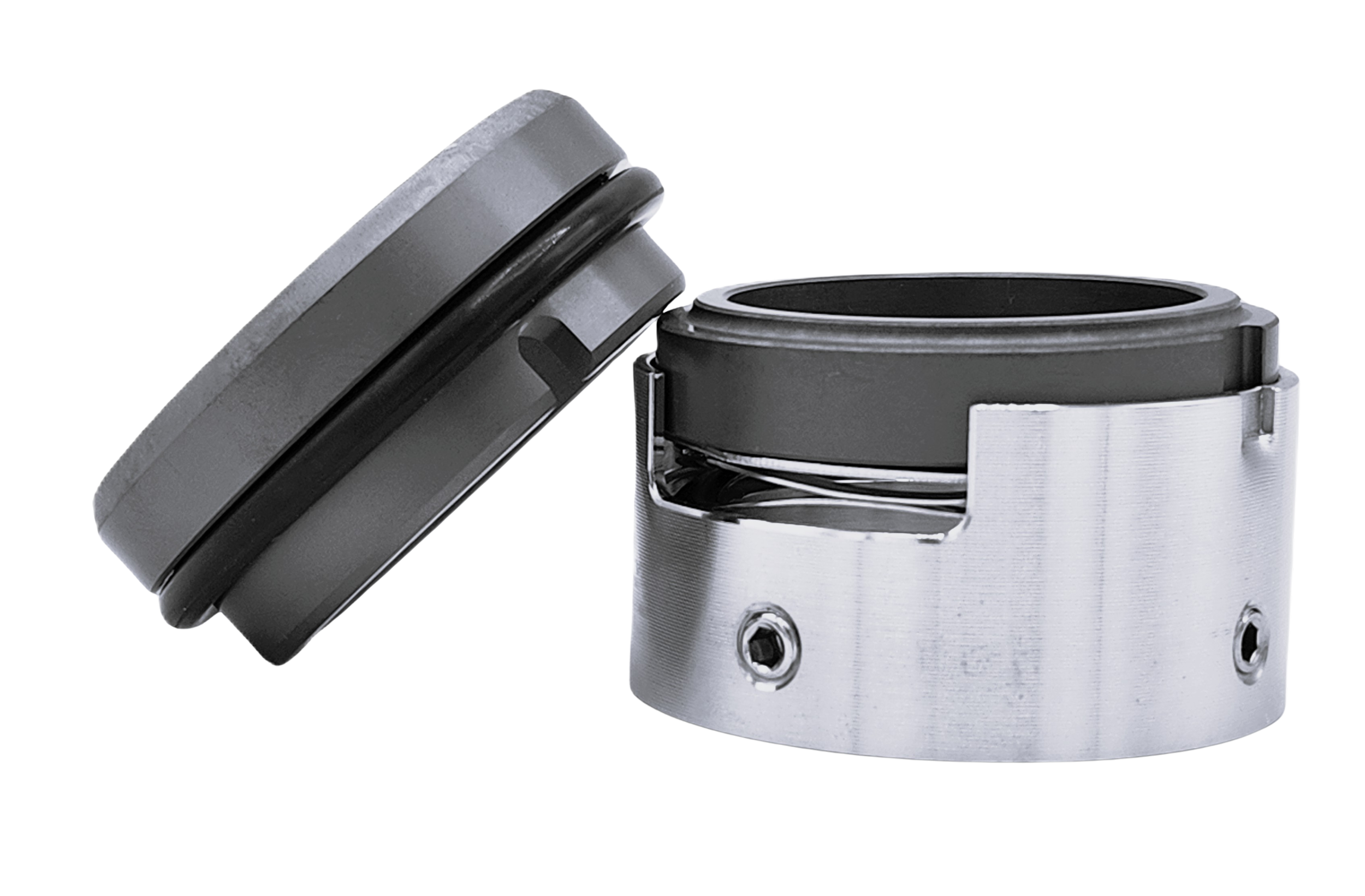

The MS-U700N is a wave-spring mechanical seal designed to compensate for face wear using a sinuous wave-spring. Its unbalanced design is tailored for metric DIN shafts, offering reliable performance in various applications. The easily replaceable seal faces ensure simple maintenance and extended service life.
EQUIVALENT TO
M7N / M78N
W07DMU
